Asus x99-a/usb 3.1 [31/148] Chapter 1

ASUS X99-A/USB 3.1

1-15

Chapter 1

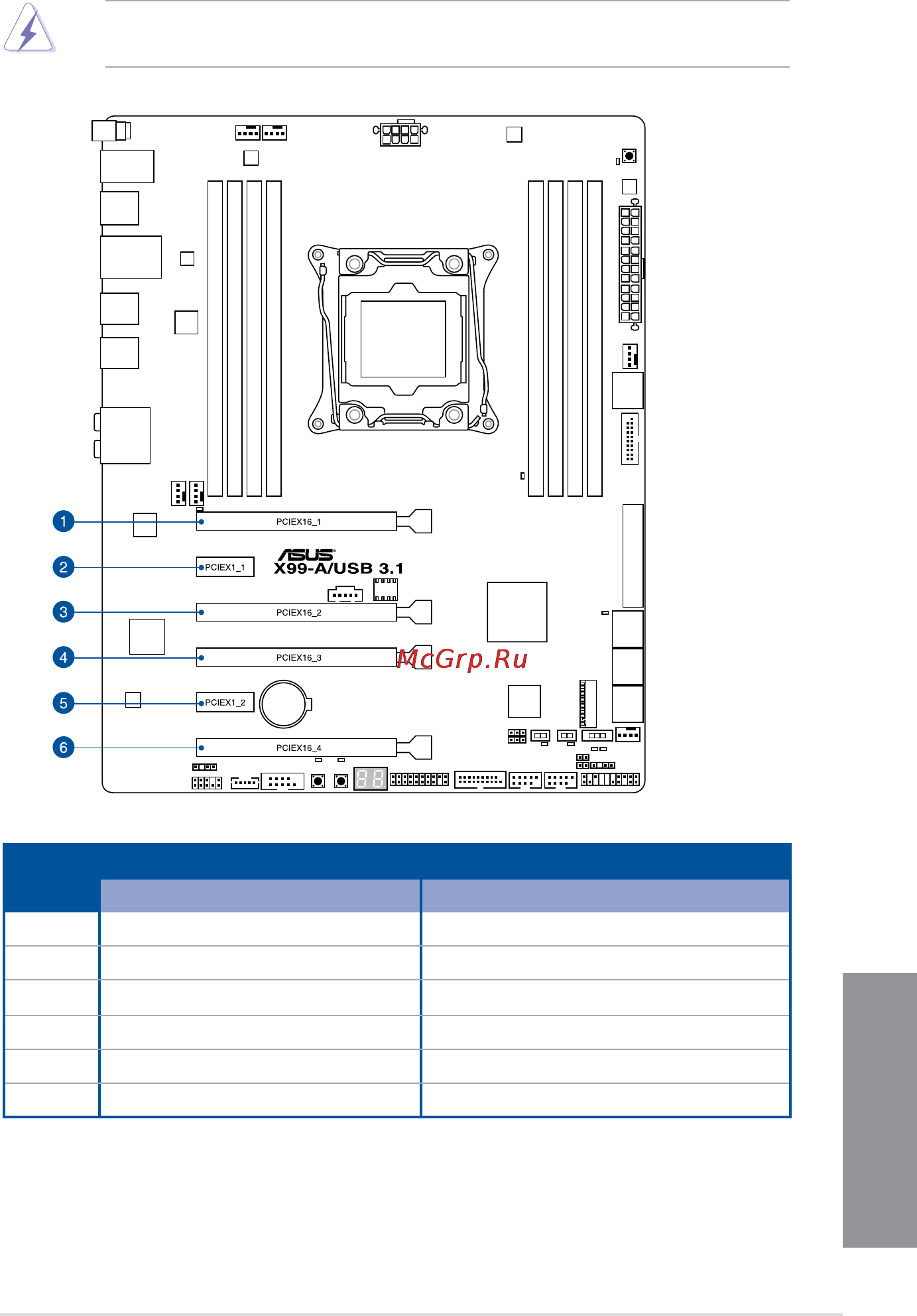

1.2.5 Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may

cause you physical injury and damage motherboard components.

Slot No.

Slot Description

40-LANE 28-LANE

1 PCIe 3.0/2.0 x16_1 slot PCIe 3.0/2.0 x16_1 slot

2 PCIe 2.0 x1_1 slot PCIe 2.0 x1_1 slot

3 PCIe 2.0 x16_2 slot PCIe 2.0 x16_2 slot

4 PCIe 3.0/2.0 x16_3 slot PCIe 3.0/2.0 x16_3 slot

5 PCIe 2.0 x1_2 slot PCIe 2.0 x1_2 slot

6 PCIe 3.0/2.0 x16_4 slot PCIe 3.0/2.0 x16_4 slot
