Asus x99-a/usb 3.1 [60/148] Chapter 2

2-2

Chapter 2: Basic installation

Chapter 2

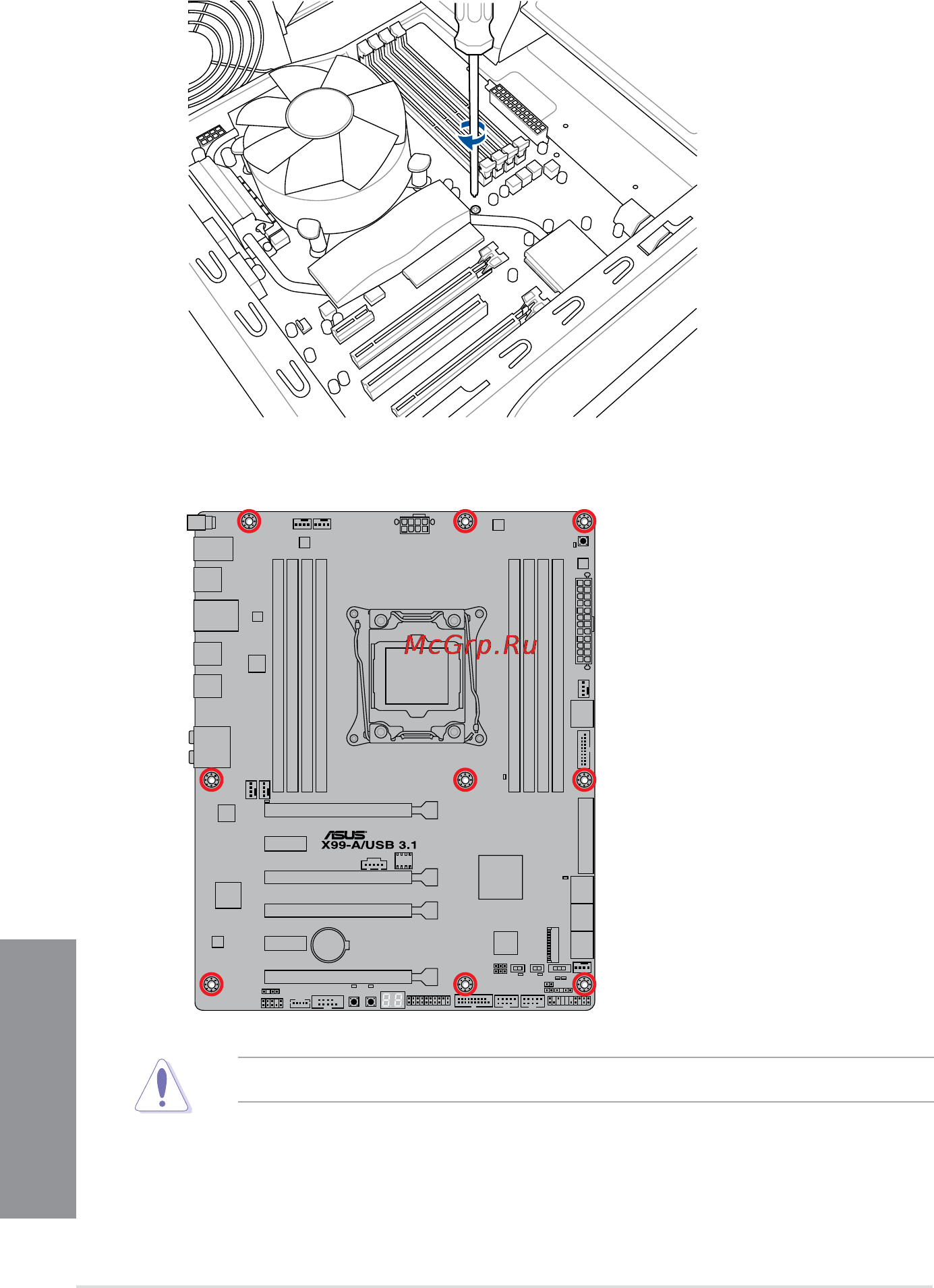

3. Place nine screws into the holes indicated by circles to secure the motherboard to the

chassis.

DO NOT overtighten the screws! Doing so can damage the motherboard.
