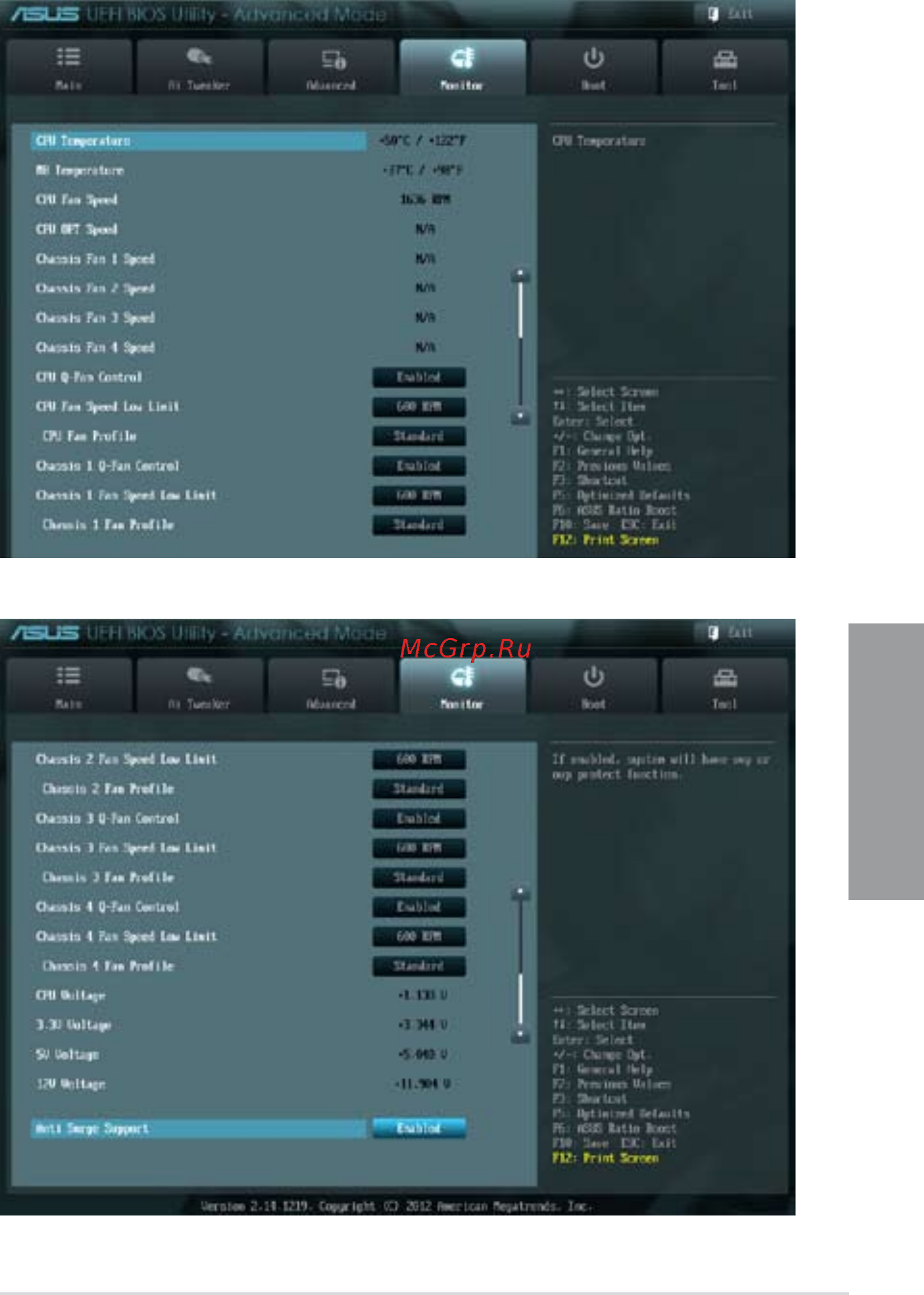

ASUS P9X79 LE 3-39
Chapter 3
3.6 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
