Asus TUF SABERTOOTH X79 [49/148] Motherboard installation

ASUS SABERTOOTH X79 2-31

Chapter 2

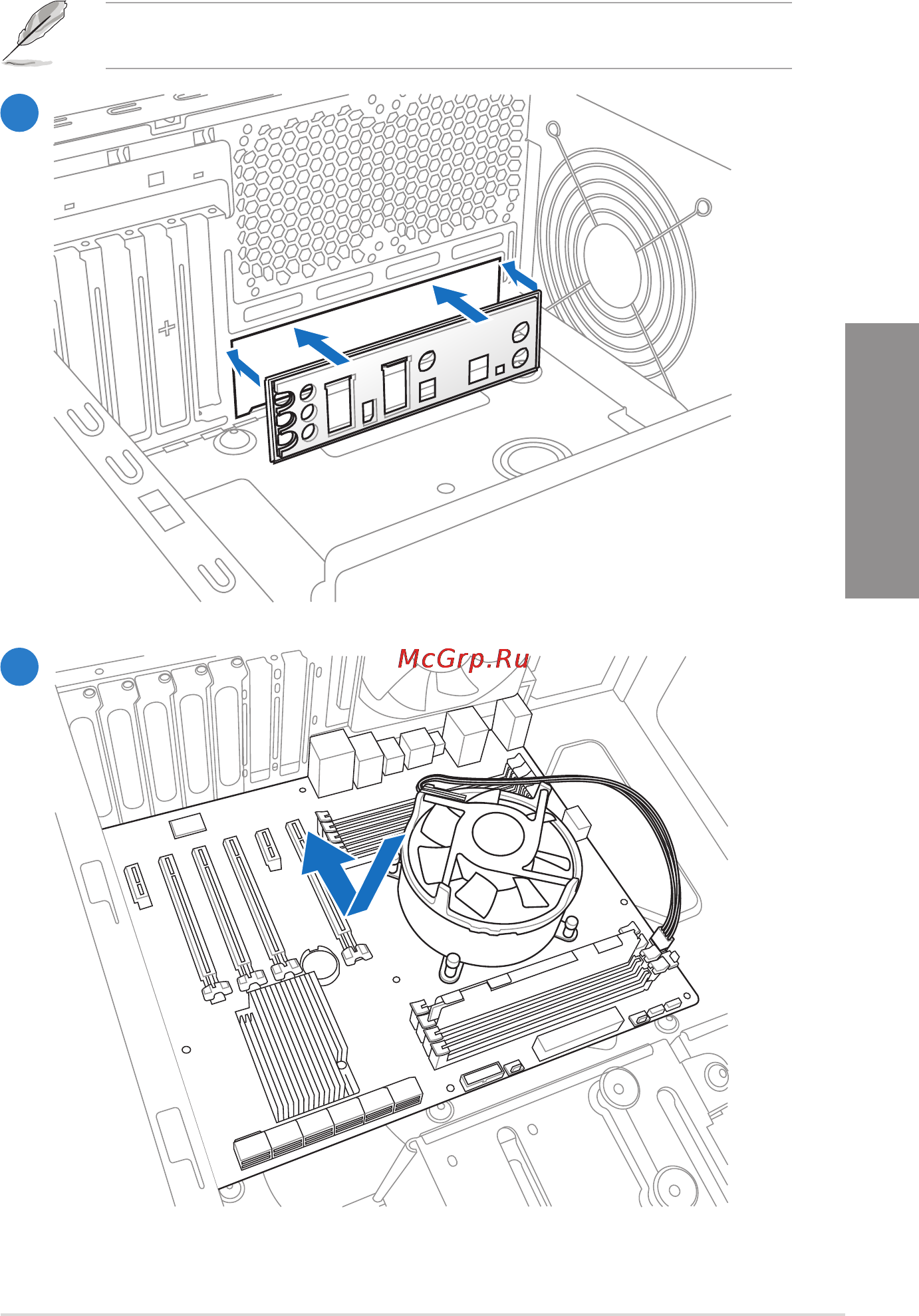

2.3.5 Motherboard installation

The diagrams in this section are for reference only. The motherboard layout may vary with

models, but the installation steps remain the same.

++E8040_SABERTOOTH_X79_V3.indb 31 21/1/13 5:35:22 PM
