Asus TUF SABERTOOTH X79 [94/148] Chapter 3

3-32 Chapter 3: BIOS setup

Chapter 3

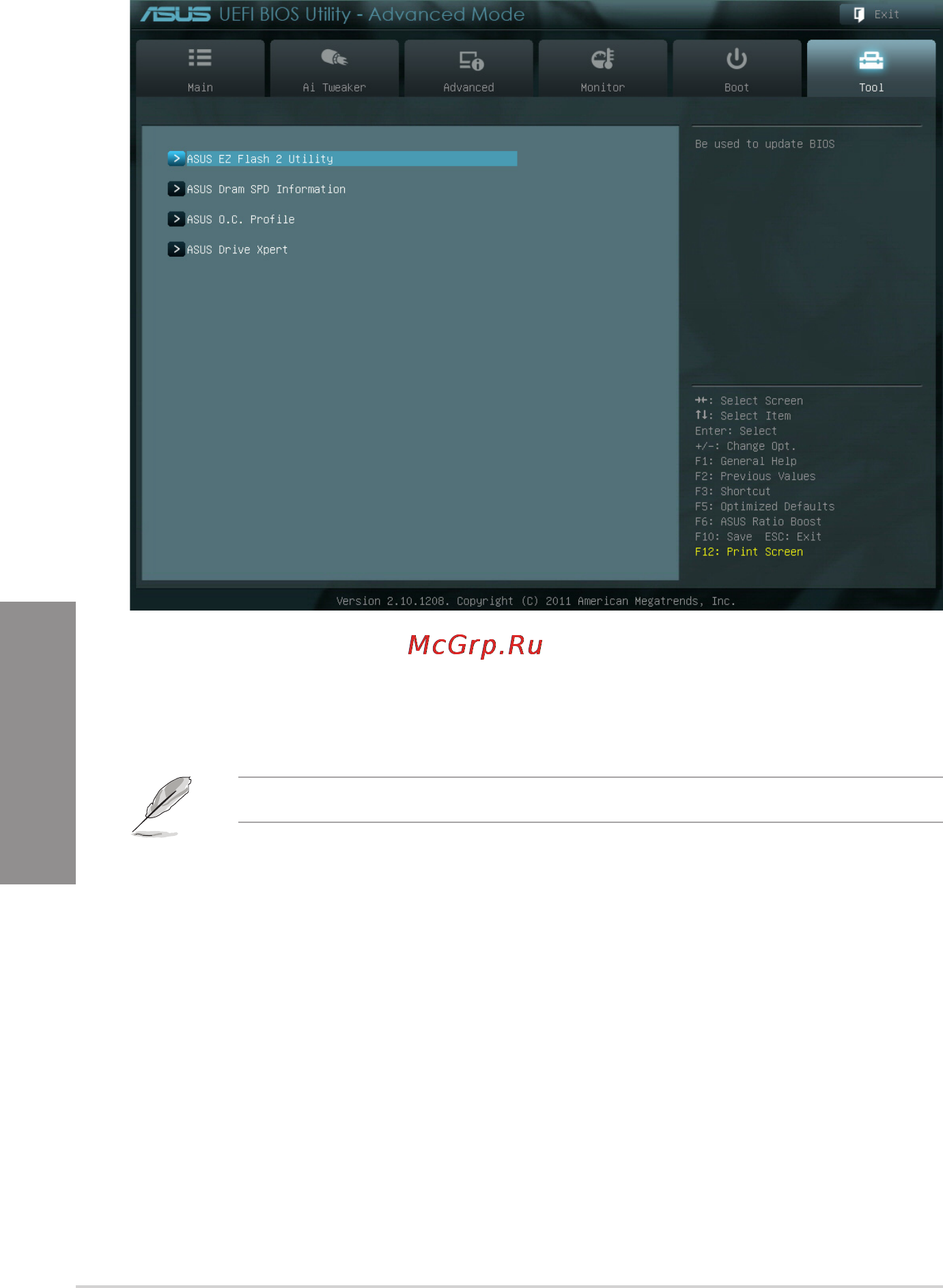

3.8 Tool menu

The Tool menu items allow you to congure options for special functions. Select an item then

press <Enter> to display the submenu.

3.8.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2 Utility. When you press <Enter>, a conrmation message

appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to

conrm your choice.

For more details, refer to section 3.10.2 ASUS EZ Flash 2 utility.

++E8040_SABERTOOTH_X79_V3.indb 32 21/1/13 5:36:02 PM
