Инструкция по эксплуатации Страница: 79

Asus TUF SABERTOOTH X79 [79/148] Advanced menu

ASUS SABERTOOTH X79 3-17

Chapter 3

Be cautious when changing the settings of the Advanced menu items. Incorrect eld values

can cause the system to malfunction.

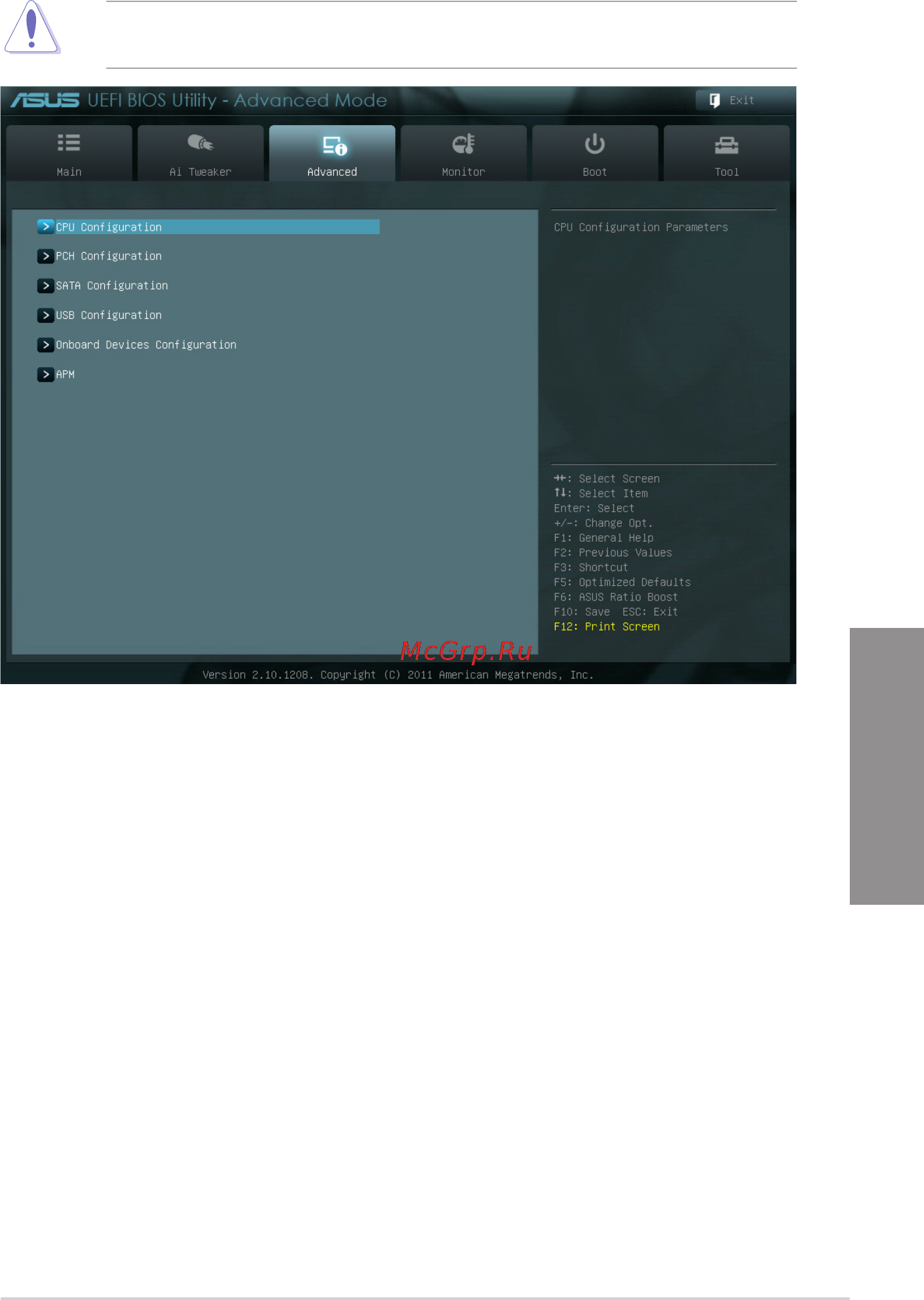

3.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system

devices.

++E8040_SABERTOOTH_X79_V3.indb 17 21/1/13 5:35:57 PM
