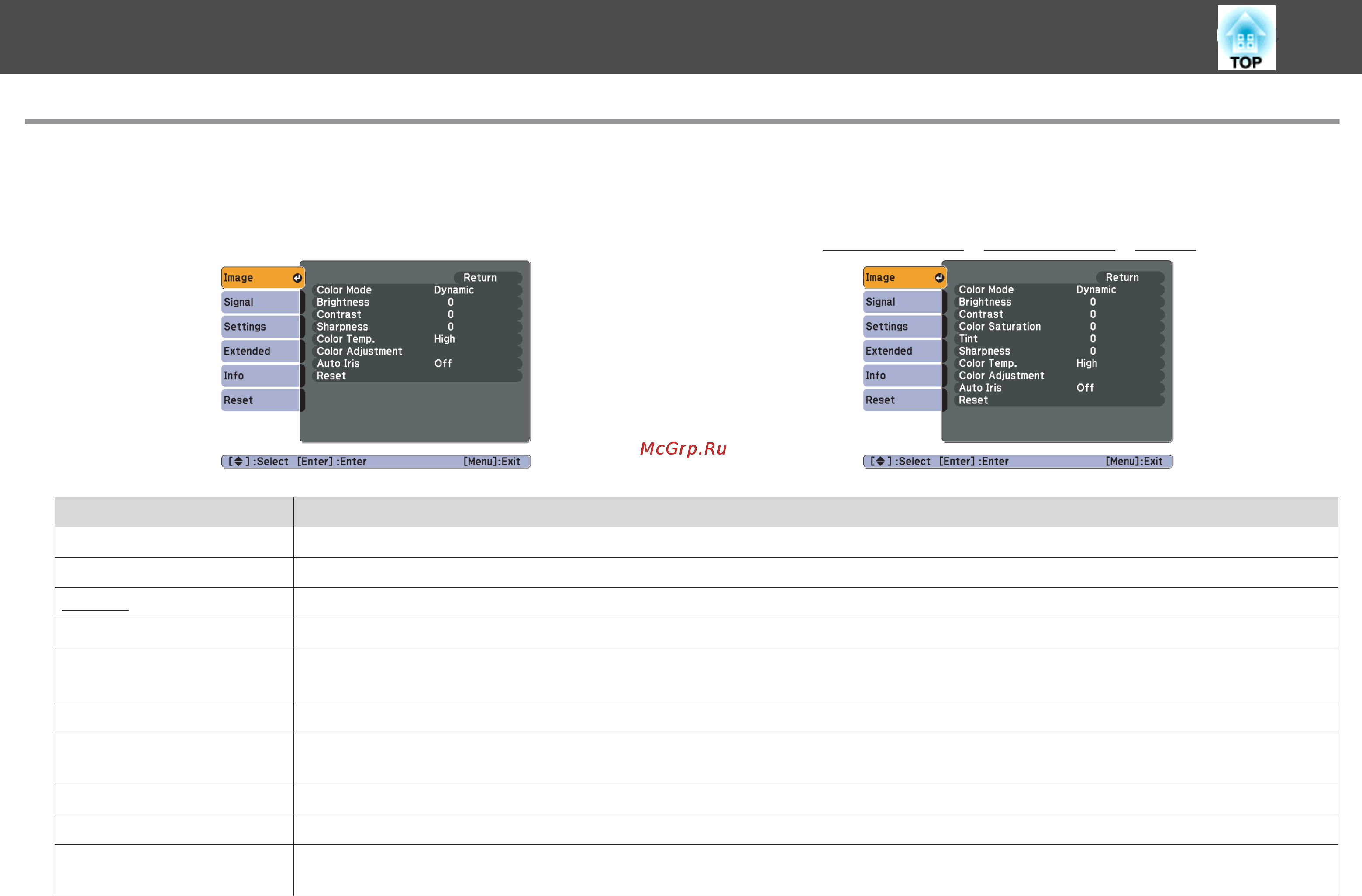

Image Menu
Items that can be set vary depending on the image signal and Source currently being projected as shown in the following screen shots. Setting details
are saved for each image signal.
Analog RGB/Digital RGB/USB Component Video
g
/Composite video
g
/S-Video
g
Sub Menu Function
Color Mode
You can select the quality of the image to suit your surroundings.s p.15
Brightness
You can adjust the image Brightness.
Contrast
g
You can adjust the difference between light and shade in the images.
Color Saturation
You can adjust the Color Saturation for the images.
Tint
(Adjustment is only possible when NTSC signals are being input if you use composite video/S-Video.)
You can adjust the image Tint.
Sharpness
You can adjust the image sharpness.
Color Temp.
You can adjust the overall tint of the image. When High is selected the image becomes tinged with blue, when Low is selected the image becomes
tinged with red.
Color Adjustment
Red, Green, Blue: You can adjust the saturation of each color individually.
Auto Iris
Set whether or not (On/Off) to adjust to the optimum light status for images being projected.s p.16
Reset
You can reset all adjustment values for the Image menu functions to their default settings. To return all menu items to their default settings, see
s p.38
List of Functions
31
