Epson EH-TW450 [7/78] Part names and functions
![Epson EH-TW450 [7/78] Part names and functions](/views2/1165790/page7/bg7.png)

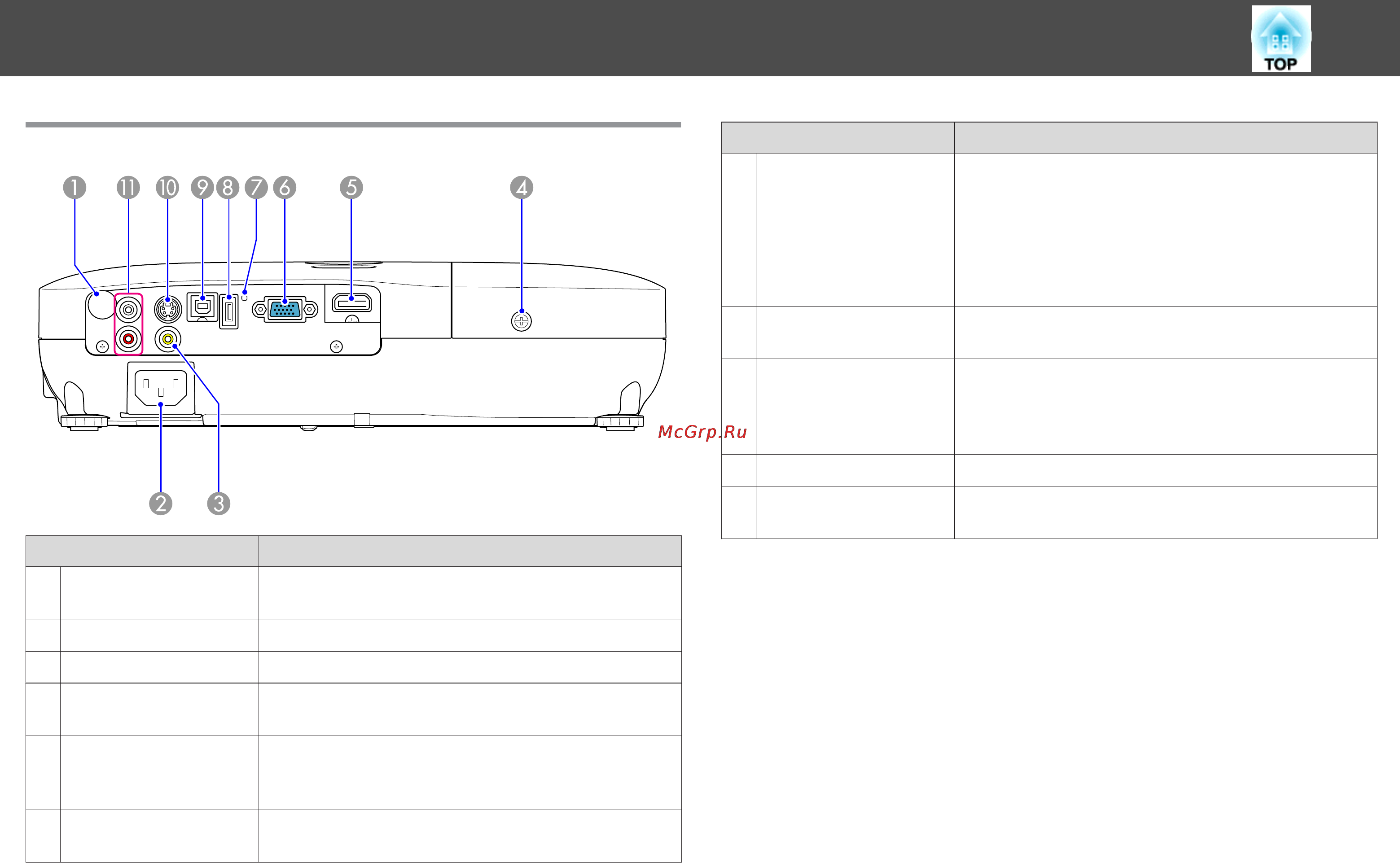

Rear
Name Function
A
Remote Receiver
Receives signals from the remote control.s Quick Start
Guide
B
Power inlet
Connects to the power cable.s Quick Start Guide
C
Video Input Port
For composite video signals from video sources.
D
Lamp Cover Fixing
Screw
Screw to fix the Lamp cover in place.s p.56
E
HDMI input port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with HDCP
g
.
F
Computer input port
For video signals from a computer and component
video signals from other video sources.
Name Function
G
USB indicator
The following explains the status of USB devices
connected to USB(TypeA) port.
OFF: USB device is not connected
Orange Light ON: USB device is connected
Green Light ON: USB device is operating
Red Light ON: Error
H
USB(TypeA) port
Connects a USB storage device or a digital camera, and
projects JPEG images using Slideshow.
I
USB(TypeB) port
When controlling the projector from a computer,
connect it to the computer with a commercially
available USB cable. This port is for control use and
should not normally be used.s p.66
J
S-Video input port
For S-video signals from video sources.
K
Audio-L/R port
Inputs audio from the audio out port on the other
equipment.s Quick Start Guide
Part Names and Functions
7
