Epson EH-TW450 [6/78] Part names and functions
![Epson EH-TW450 [6/78] Part names and functions](/views2/1165790/page6/bg6.png)

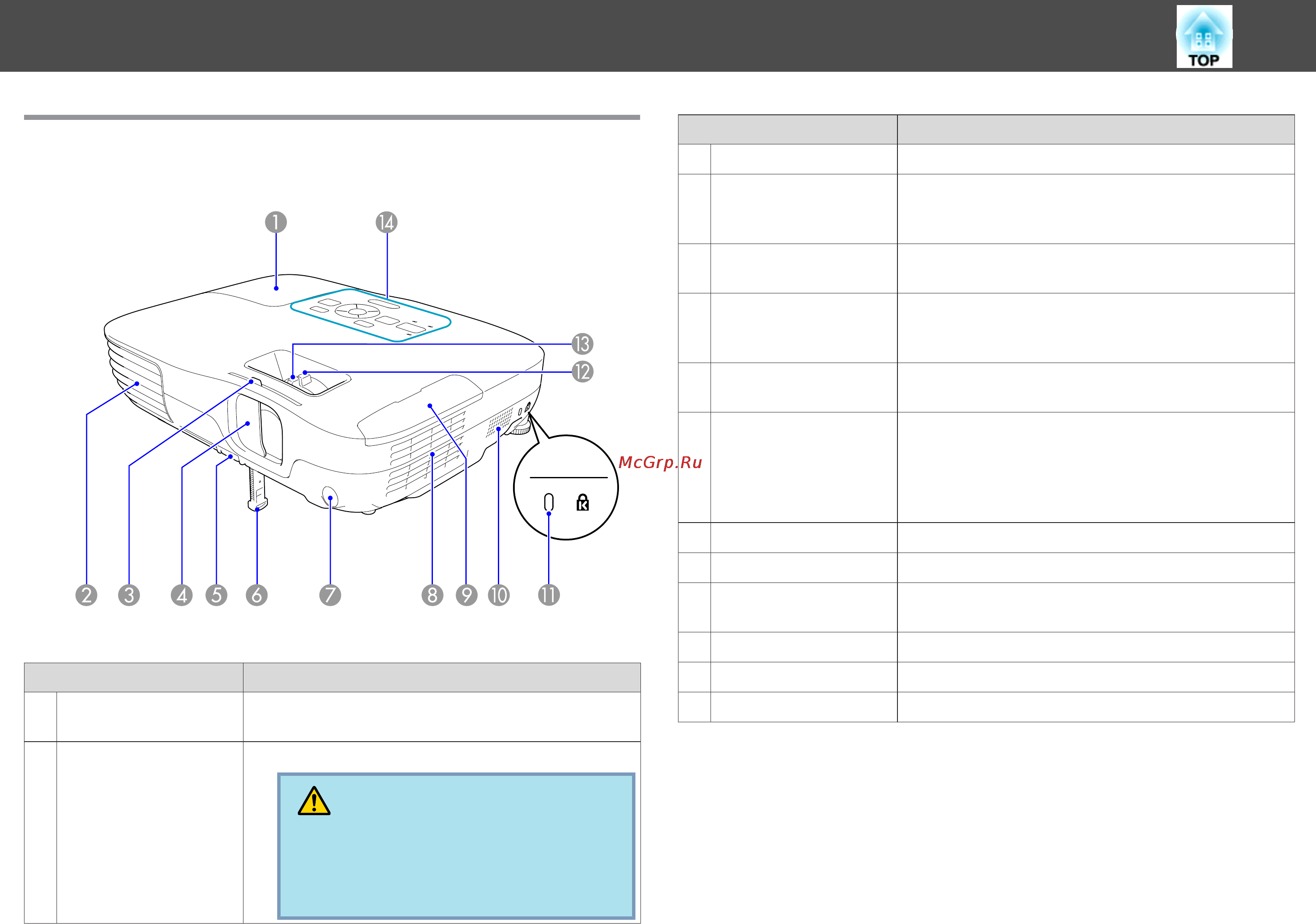

Front/Top
Name Function
A
Lamp cover
Open this cover when replacing the projector's Lamp.
s p.56
B
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
Do not place objects that may become warped or
otherwise affected by heat near the Air exhaust
vent and do not put your face or hands near the
vent while projection is in progress.
Name Function
C
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
D
A/V mute slide
Close when not using the projector to protect the lens.
By closing during projection you can hide the image and
the sound (A/V Mute).s p.16
E
Foot adjust lever
Pull the Foot adjust lever to extend and retract the Front
adjustable foot.s Quick Start Guide
F
Front adjustable foot
Extend and adjust the position of the projected image
when the projector is placed on a surface such as a desk.
s Quick Start Guide
G
Remote Receiver
Receives signals from the remote control.s Quick Start
Guide
H
Air filter
(Air intake vent)
Takes in air to cool the projector internally. If dust
collects here it can cause the internal temperature to
rise, and this can lead to problems with operation and
shorten the optical engine's service life. Be sure to clean
the Air filter regularly. s p.54, p.59
I
Air filter cover
Open and close when replacing the air filter.s p.59
J
Speaker
K
Security slot
The Security slot is compatible with the Microsaver
Security System manufactured by Kensington.s p.22
L
Zoom ring
Adjusts the image size.s Quick Start Guide
M
Focus ring
Adjusts the image focus.s Quick Start Guide
N
Control panel
s p.8
Part Names and Functions
6
