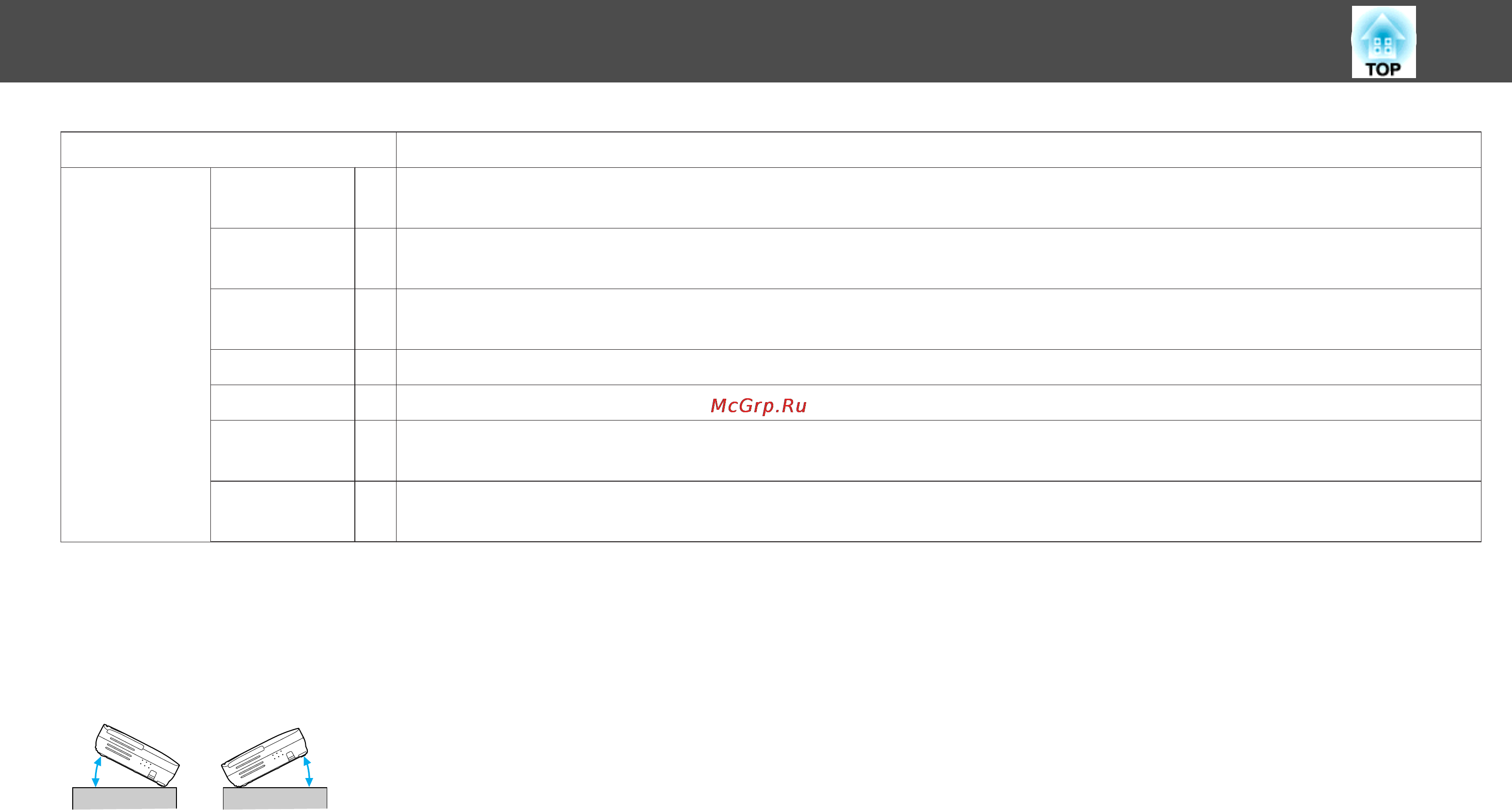

Product name
EH-TW450
Connectors Computer
Input Port
1
Mini D-Sub15-pin (female) blue
Video input
port
1
RCA pin jack
S-Video
input port
1
Mini DIN 4-pin
Audio Port 1
RCA pin jack x 2 (L, R)
HDMI port 1
HDMI (Audio is only supported by PCM)
USB(TypeA)
Port
*1
1
USB connector (Type A)
USB(TypeB)
Port
*2
1
USB connector (Type B)
*1 Supports USB 1.1.
*2 Supports USB 2.0.
USB(TypeA) and USB(TypeB) ports are not guaranteed to operate all devices that support USB.
This product is also designed for IT power distribution system with phase-to-phase voltage 230V.
Angle of tilt
If you use the projector tilted at an angle of more than 30˚ it could be damaged and cause an accident.
Specifications
71
