Operating the Monitor 31
2. Press the and buttons to toggle between options in the Menu. As
you move from one icon to another, the option name is highlighted.
3. To select the highlighted item on the menu press the button again.
4. Press the and buttons to select the desired parameter.
5. Press the button to enter the slide bar and then use the or
buttons, according to the indicators on the menu, to make your
changes.
6. Select the
to return to previous menu without accepting current
settings or
to accept and return to previous menu.

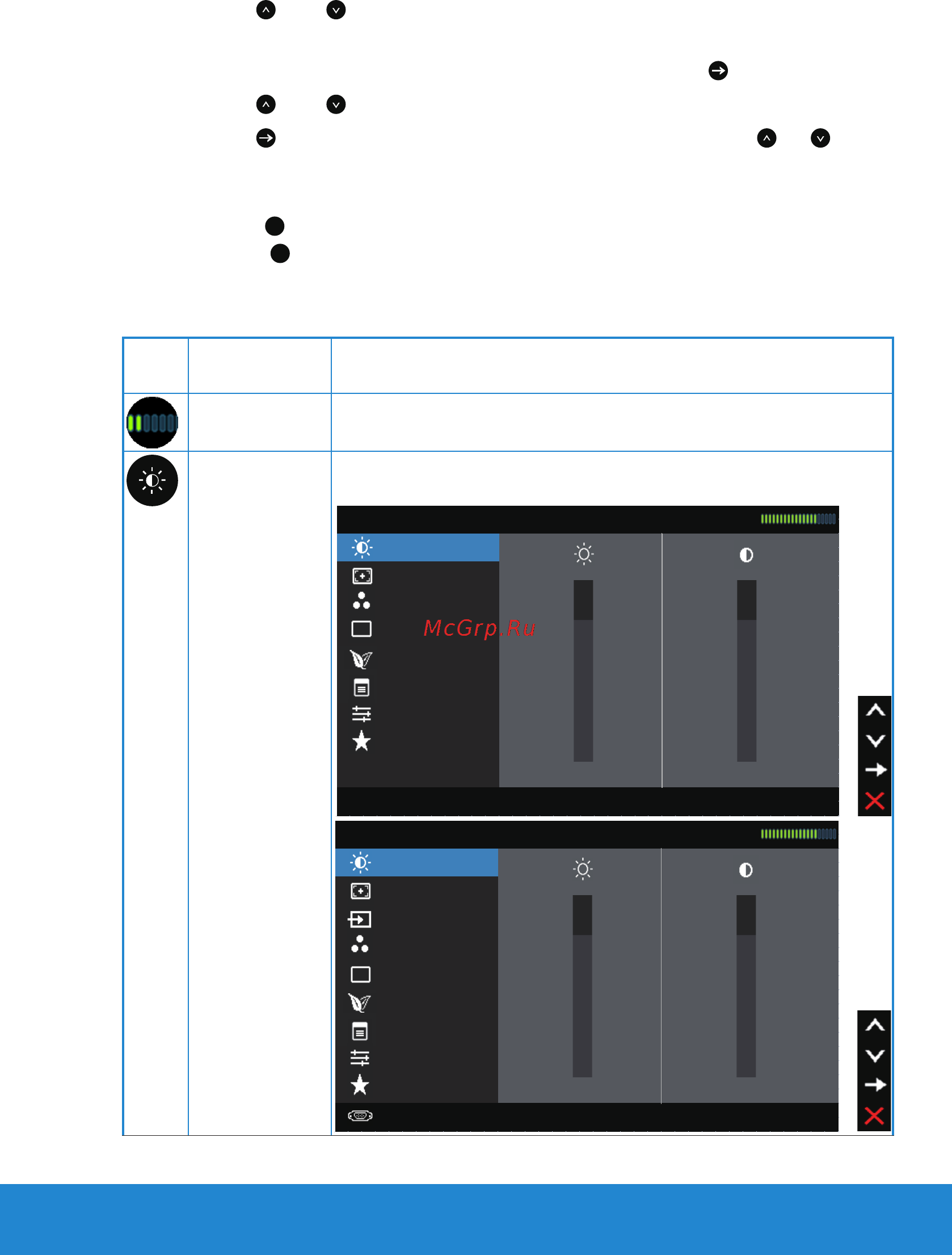

The table below provides a list of all the OSD menu options and their
functions.
Icon Menu and
Submenus
Description
Energy Use This meter shows the energy level being consumed by the
monitor in real time.
Brightness/
Contrast
Use the Brightness and Contrast menu to adjust the
Brightness/Contrast.
Dell E1914H Energy Use
Brightness / Contrast
Display Settings
Color Settings
Auto Adjust
Personalize
75 75
Other Settings
Energy Settings
Menu Settings
Resolution: 1024x768, 60Hz Maximum Resolution: 1366x768, 60Hz
Input Source
Auto Adjust
Dell E2014H Energy Use
Brightness / Contrast
75
75
Display Settings
Color Settings
Resolution: 1024x768, 60Hz Maximum Resolution: 1600x900, 60Hz
Other Settings
Menu Settings
Energy Settings
Personalize
