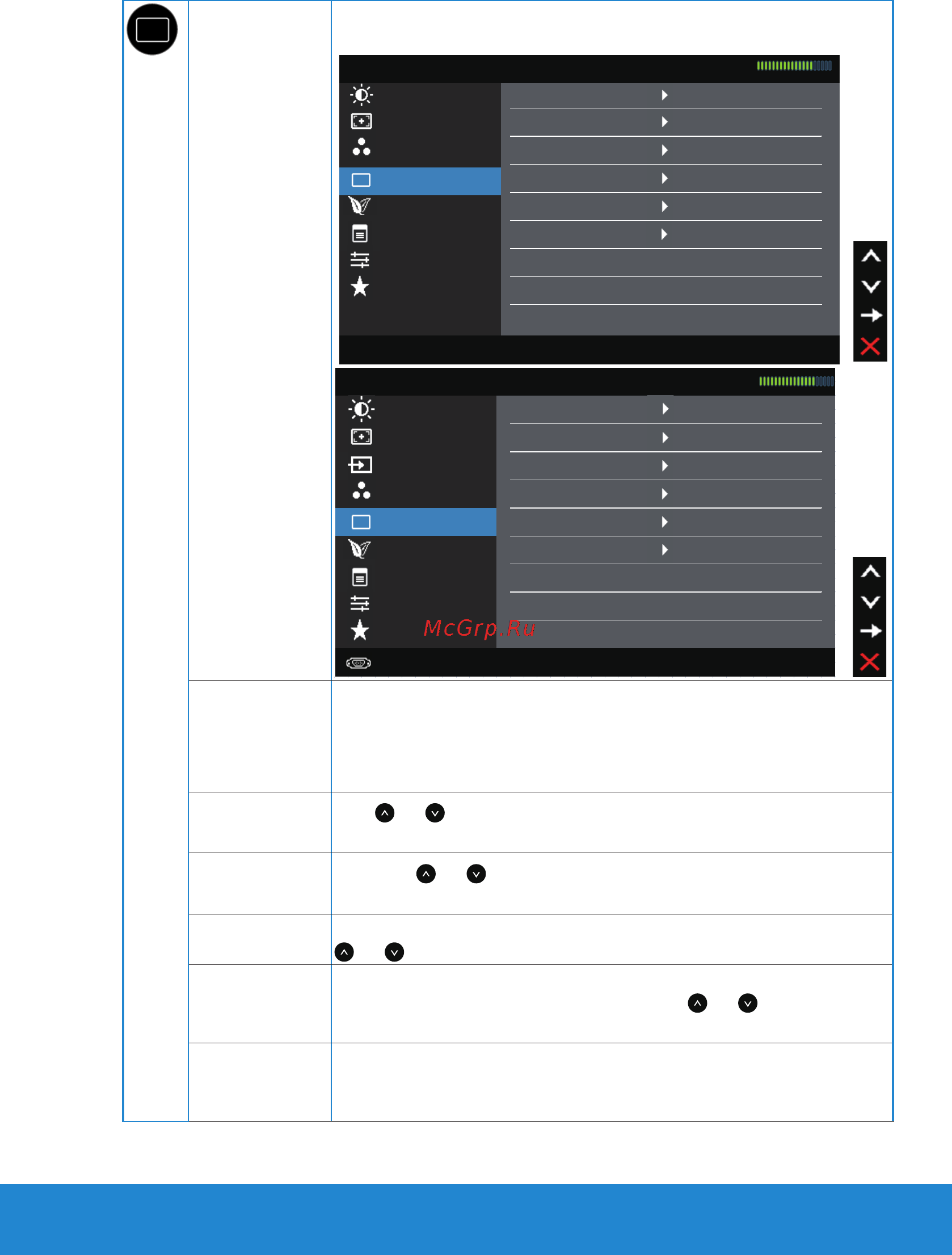

Operating the Monitor 37
Display
Settings
Use the Displays Settings menu to adjust the monitor's
display settings.
Personalize
50
Auto Adjust Horizontal Position 50
Dell E1914H Energy Use
Brightness / Contrast Aspect Ratio Wide 16:9
Other Settings
Menu Settings Phase
Pixel Clock 50
Display Settings Sharpness 50
Energy Settings
Color Settings Vertical Position
Resolution: 1024x768, 60Hz Maximum Resolution: 1366x768, 60Hz
Reset Display Settings
50
Aspect Ratio Wide 16:9
Dell E2014H Energy Use
Brightness / Contrast
Horizontal Position 50
Color Settings Sharpness 50
Auto Adjust
Vertical Position 50Input Source
Energy Settings Phase 50
Display Settings Pixel Clock 50
Menu Settings Reset Display Settings
Personalize
Other Settings
Resolution: 1024x768, 60Hz Maximum Resolution: 1600x900, 60Hz
Aspect Ratio
Adjusts the image ratio as Wide 16:9, 4:3, or 5:4.
NOTE: Wide 16:9 adjustment is not required at maximum
preset resolution 1366 x 768 (for E1914H) or 1600 x 900
(for E2014H).
Horizontal
Position
Use or the buttons to adjust image left and right.
Minimum is '0' (-). Maximum is '100' (+).
Vertical
Position
Use the or buttons to adjust image up and down.
Minimum is '0' (-). Maximum is '100' (+).
Sharpness
This feature can make the image look sharper or softer. Use
or to adjust the sharpness from '0' to '100'.
Pixel Clock
The Phase and Pixel Clock adjustments allow you to adjust
your monitor to your preference. Use or buttons to
adjust for best image quality.
Phase
If satisfactory results are not obtained using the Phase
adjustment, use the Pixel Clock (coarse) adjustment and
then use Phase (fine), again.
