62  Setting Up Your Monitor

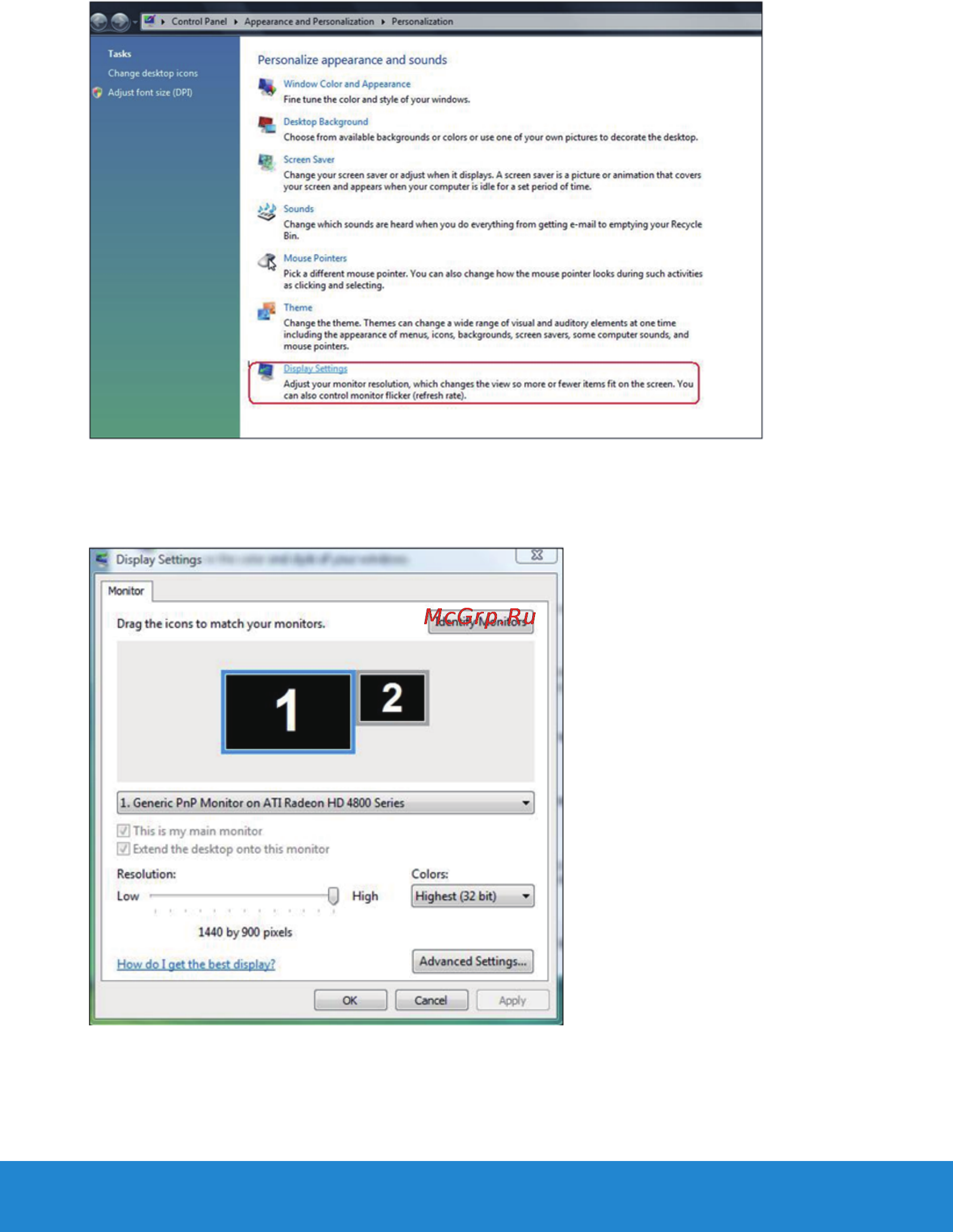

2. Click Display Settings.

3. Click Identify Monitors.

• You may need to restart your system and repeat steps 1 to 3 if the

system does not detect the added monitor.
