Dell alienware 15, a15-6366 [108/149] Procedure
![Dell alienware 15, a15-6366 [108/149] Procedure](/views2/1166679/page108/bg6c.png)
Procedure

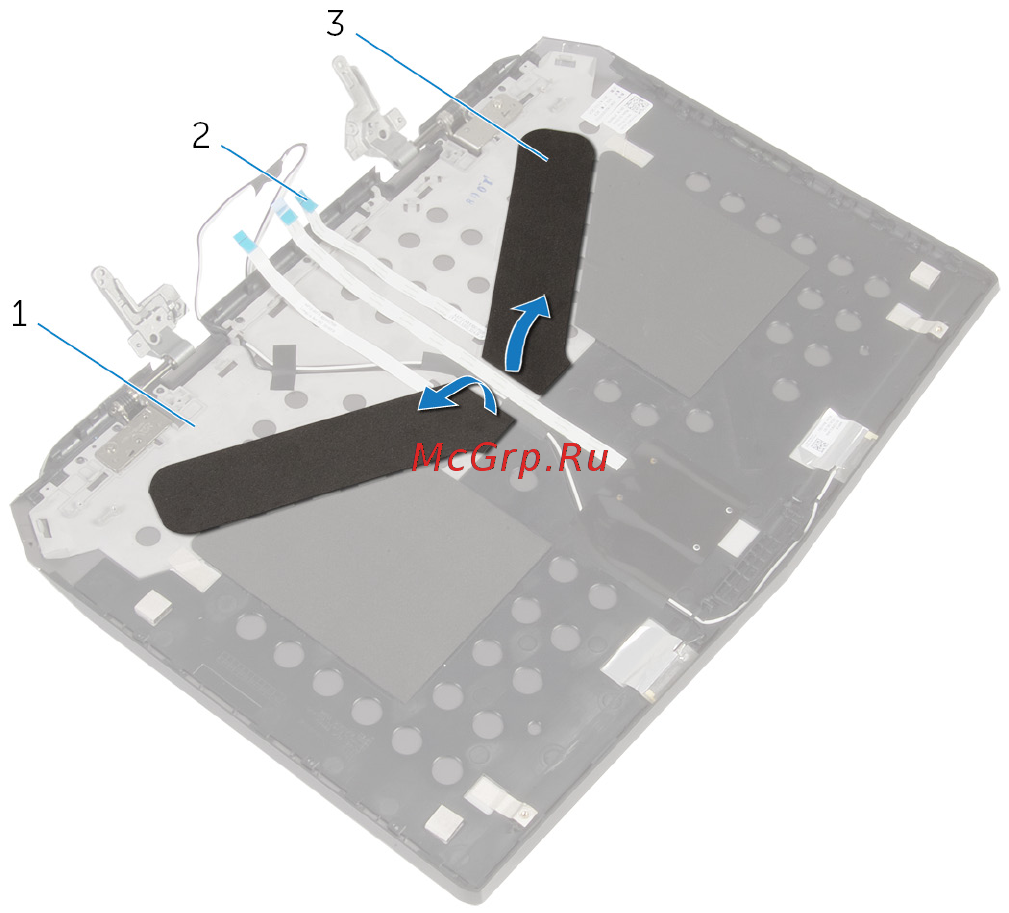

1 Peel off the tapes that secure the display-panel AlienFX LEDs to the display
back-cover.
1 display back-cover 2 display-panel AlienFX LED
cables (2)
3 tapes (2)
2 Note the routing of the display-panel AlienFX LED cables and peel off the
cables from the display back-cover.
3 Note the location of the display-panel AlienFX LEDs and peel off the LEDs
from the display back-cover.
108
