Dell alienware 15, a15-6366 [61/149] Procedure
![Dell alienware 15, a15-1585 [61/149] Procedure](/views2/1166679/page61/bg3d.png)
Procedure

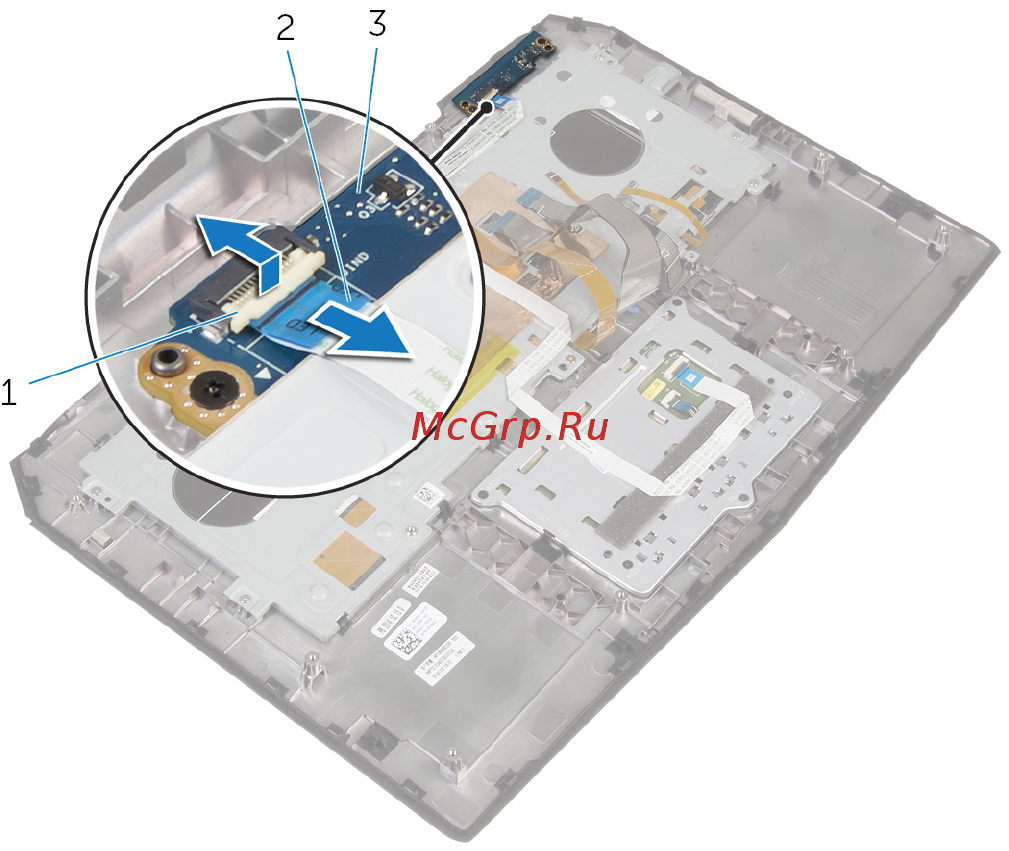

1 Lift the latch and disconnect the status-light board cable from the status-
light board.
1 latch 2 status-light board cable
3 status-light board
2 Remove the screws that secure the status-light board to the palm-rest
assembly.
61
