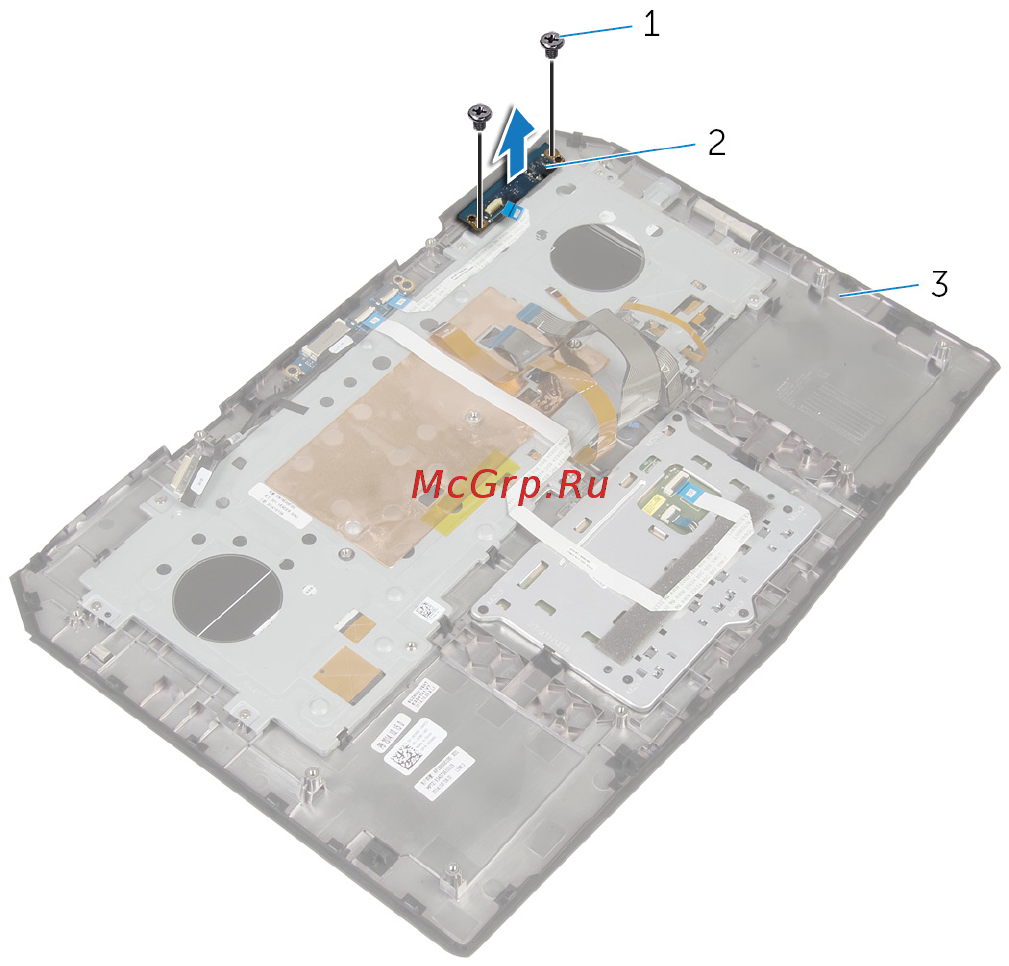

3 Lift the status-light board off the palm-rest assembly.
1 screws (2) 2 status-light board
3 palm-rest assembly
62
