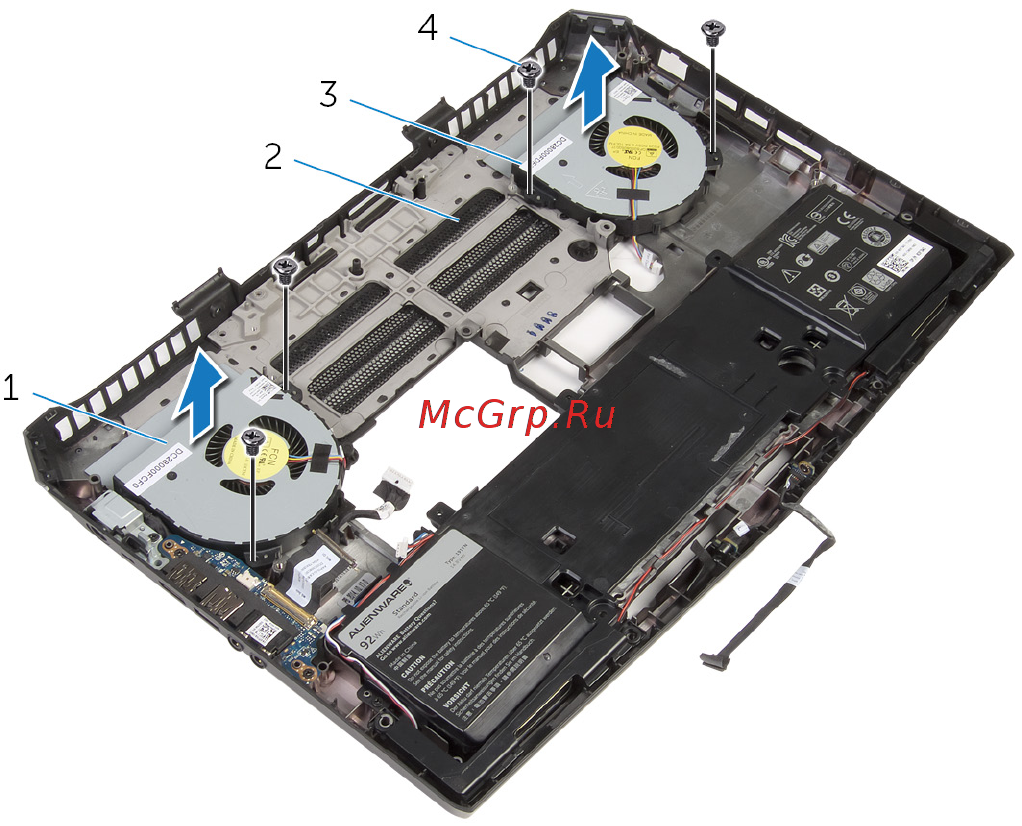

2 Lift the processor fan and video-card fan off the computer base.
1 processor fan 2 computer base
3 video-card fan 4 screws (4)
124
