5 Disconnect the battery cable from the system board.

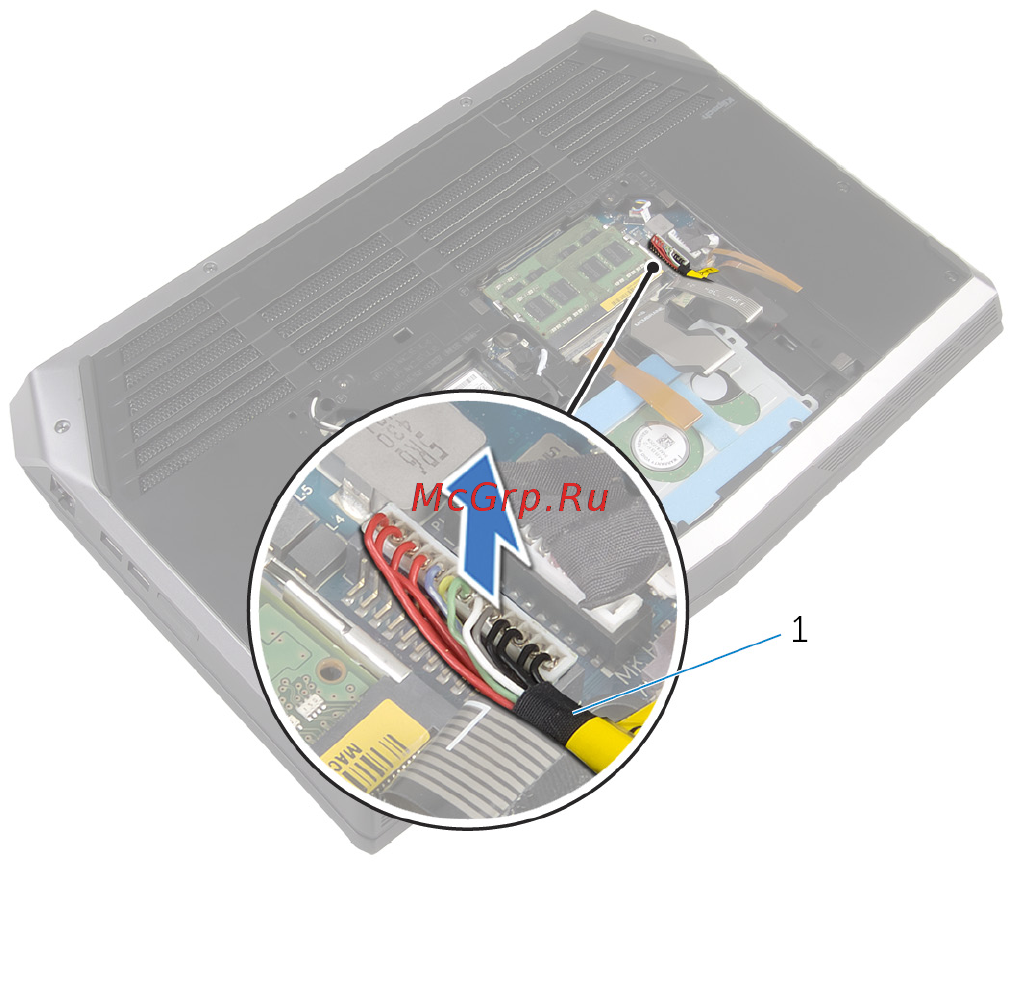

1 battery cable
6 Turn the computer over and open the display as far as possible.
7 Press and hold the power button for 4 seconds to ground the system
board.
18
Содержание
- Alienware 15 service manual 1
- Caution a caution indicates either potential damage to hardware or loss of data and tells you how to avoid the problem 2
- Note a note indicates important information that helps you make better use of your computer 2
- Notes cautions and warnings 2
- Warning a warning indicates a potential for property damage personal injury or death 2
- After working inside your computer 15 3
- Alienware 15 service manual 3
- Before working inside your computer 12 3
- Contents 3
- Removing the base panel 16 3
- Removing the memory modules 0 3
- Removing the solid state drives 4 3
- Replacing the base panel 9 3
- Replacing the memory modules 2 3
- Replacing the solid state drives 6 3
- Removing the hard drive 7 4
- Removing the palm rest 36 4
- Removing the touch pad 4 4
- Removing the wireless card 33 4
- Replacing the hard drive 32 4
- Replacing the palm rest 3 4
- Replacing the touch pad 48 4
- Replacing the wireless card 5 4
- Removing the i o board 4 5
- Removing the keyboard 9 5
- Removing the power button board 6 5
- Removing the status light board 60 5
- Replacing the i o board 66 5
- Replacing the keyboard 5 5
- Replacing the power button board 9 5
- Replacing the status light board 3 5
- Removing the display assembly 77 6
- Removing the front alienfx led boards 1 6
- Removing the hinge covers 74 6
- Removing the speakers 7 6
- Replacing the display assembly 1 6
- Replacing the front alienfx led board 73 6
- Replacing the hinge covers 6 6
- Replacing the speakers 70 6
- Removing the display back cover 5 7
- Removing the display bezel 83 7
- Removing the display hinges 2 7
- Removing the display panel 88 7
- Replacing the display back cover 8 7
- Replacing the display bezel 87 7
- Replacing the display hinges 4 7
- Replacing the display panel 1 7
- Removing the alienware alienhead led board 103 8
- Removing the camera 99 8
- Removing the display panel alienfx leds 07 8
- Removing the logo board 11 8
- Replacing the alienware alienhead led board 06 8
- Replacing the camera 102 8
- Replacing the display panel alienfx leds 110 8
- Replacing the logo board 113 8
- Removing the fans 23 9
- Removing the heat sink assembly 20 9
- Removing the power adapter port 26 9
- Removing the system board 114 9
- Replacing the fans 125 9
- Replacing the heat sink assembly 122 9
- Replacing the power adapter port 128 9
- Replacing the system board 18 9
- Bios setup program 39 10
- Flashing the bios 148 10
- Removing the battery 32 10
- Removing the coin cell battery 29 10
- Removing the computer base 136 10
- Replacing the battery 35 10
- Replacing the coin cell battery 31 10
- Replacing the computer base 38 10
- Getting help and contacting alienware 149 11
- Before working inside your computer 12
- Before you begin 12
- Safety instructions 12
- Recommended tools 14
- After working inside your computer 15
- Procedure 16
- Removing the base panel 16
- Procedure 19
- Replacing the base panel 19
- Prerequisites 20
- Procedure 20
- Removing the memory modules 20
- Procedure 22
- Replacing the memory modules 22
- Post requisites 23
- Prerequisites 24
- Procedure 24
- Removing the solid state drives 24
- Post requisites 26
- Procedure 26
- Replacing the solid state drives 26
- Prerequisites 27
- Removing the hard drive 27
- Procedure 28
- Post requisites 32
- Procedure 32
- Replacing the hard drive 32
- Prerequisites 33
- Procedure 33
- Removing the wireless card 33
- Post requisites 35
- Procedure 35
- Replacing the wireless card 35
- Prerequisites 36
- Procedure 36
- Removing the palm rest 36
- Post requisites 43
- Procedure 43
- Replacing the palm rest 43
- Prerequisites 44
- Procedure 44
- Removing the touch pad 44
- Post requisites 48
- Procedure 48
- Replacing the touch pad 48
- Prerequisites 49
- Procedure 49
- Removing the keyboard 49
- Post requisites 55
- Procedure 55
- Replacing the keyboard 55
- Prerequisites 56
- Procedure 56
- Removing the power button board 56
- Post requisites 59
- Procedure 59
- Replacing the power button board 59
- Prerequisites 60
- Removing the status light board 60
- Procedure 61
- Post requisites 63
- Procedure 63
- Replacing the status light board 63
- Prerequisites 64
- Procedure 64
- Removing the i o board 64
- Post requisites 66
- Procedure 66
- Replacing the i o board 66
- Prerequisites 67
- Procedure 67
- Removing the speakers 67
- Post requisites 70
- Procedure 70
- Replacing the speakers 70
- Prerequisites 71
- Procedure 71
- Removing the front alienfx led boards 71
- Post requisites 73
- Procedure 73
- Replacing the front alienfx led board 73
- Prerequisites 74
- Procedure 74
- Removing the hinge covers 74
- Post requisites 76
- Procedure 76
- Replacing the hinge covers 76
- Prerequisites 77
- Procedure 77
- Removing the display assembly 77
- Post requisites 81
- Procedure 81
- Replacing the display assembly 81
- Prerequisites 83
- Procedure 83
- Removing the display bezel 83
- Post requisites 87
- Procedure 87
- Replacing the display bezel 87
- Prerequisites 88
- Procedure 88
- Removing the display panel 88
- Post requisites 91
- Procedure 91
- Replacing the display panel 91
- Prerequisites 92
- Procedure 92
- Removing the display hinges 92
- Post requisites 94
- Procedure 94
- Replacing the display hinges 94
- Prerequisites 95
- Procedure 95
- Removing the display back cover 95
- Post requisites 98
- Procedure 98
- Replacing the display back cover 98
- Prerequisites 99
- Removing the camera 99
- Procedure 100
- Post requisites 102
- Procedure 102
- Replacing the camera 102
- Prerequisites 103
- Procedure 103
- Removing the alienware alienhead led board 103
- Post requisites 106
- Procedure 106
- Replacing the alienware alienhead led board 106
- Prerequisites 107
- Removing the display panel alienfx leds 107
- Procedure 108
- Post requisites 110
- Procedure 110
- Replacing the display panel alienfx leds 110
- Prerequisites 111
- Procedure 111
- Removing the logo board 111
- Post requisites 113
- Procedure 113
- Replacing the logo board 113
- Prerequisites 114
- Procedure 114
- Removing the system board 114
- Procedure 118
- Replacing the system board 118
- Post requisites 119
- Prerequisites 120
- Procedure 120
- Removing the heat sink assembly 120
- Post requisites 122
- Procedure 122
- Replacing the heat sink assembly 122
- Prerequisites 123
- Procedure 123
- Removing the fans 123
- Post requisites 125
- Procedure 125
- Replacing the fans 125
- Prerequisites 126
- Procedure 126
- Removing the power adapter port 126
- Post requisites 128
- Procedure 128
- Replacing the power adapter port 128
- Prerequisites 129
- Procedure 129
- Removing the coin cell battery 129
- Post requisites 131
- Procedure 131
- Replacing the coin cell battery 131
- Prerequisites 132
- Procedure 132
- Removing the battery 132
- Post requisites 135
- Procedure 135
- Replacing the battery 135
- Prerequisites 136
- Procedure 136
- Removing the computer base 136
- Post requisites 138
- Procedure 138
- Replacing the computer base 138
- Bios setup program 139
- Bios setup program options 139
- Entering bios setup program 139
- Overview 139
- Boot options 145
- Boot sequence 145
- Changing boot sequence for future boots 146
- Changing boot sequence for the current boot 146
- Flashing the bios 148
- Contacting alienware 149
- Getting help and contacting alienware 149
