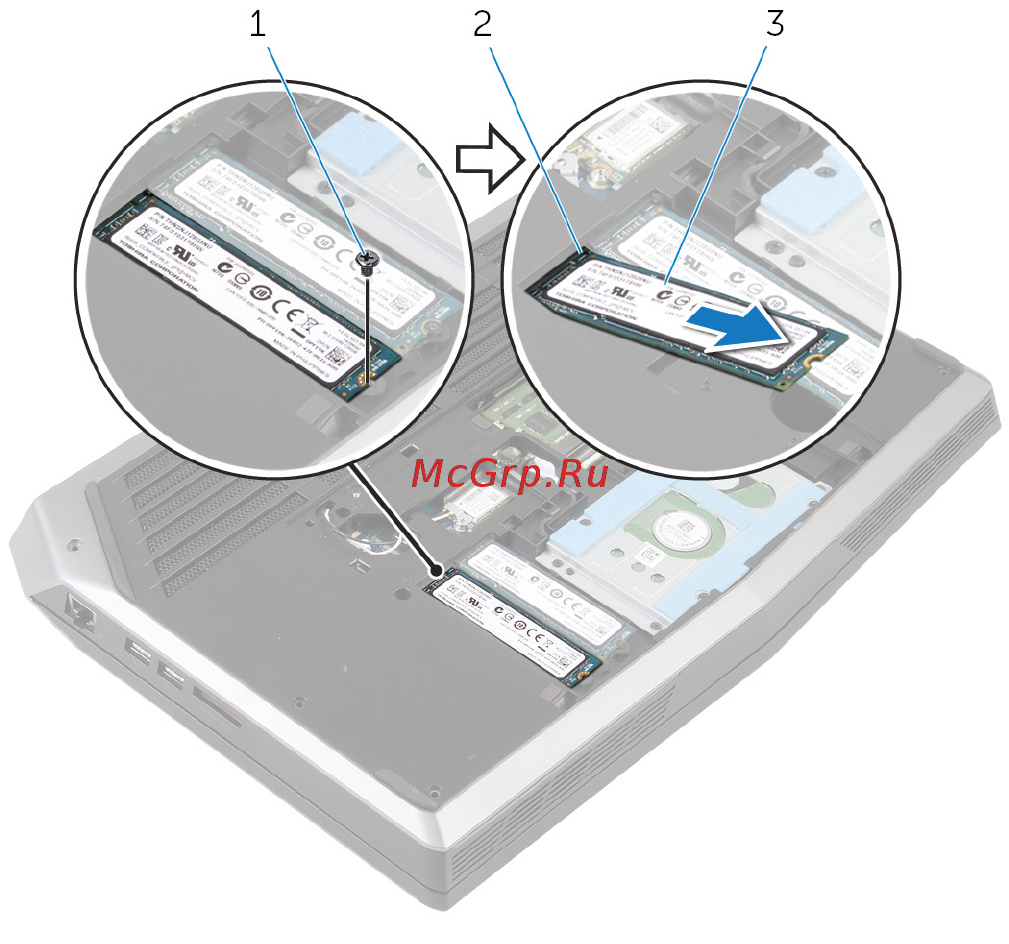

2 Slide and remove the solid-state drive from the solid-state drive slot.
1 screw 2 solid-state drive slot
3 solid-state drives (2)
25
