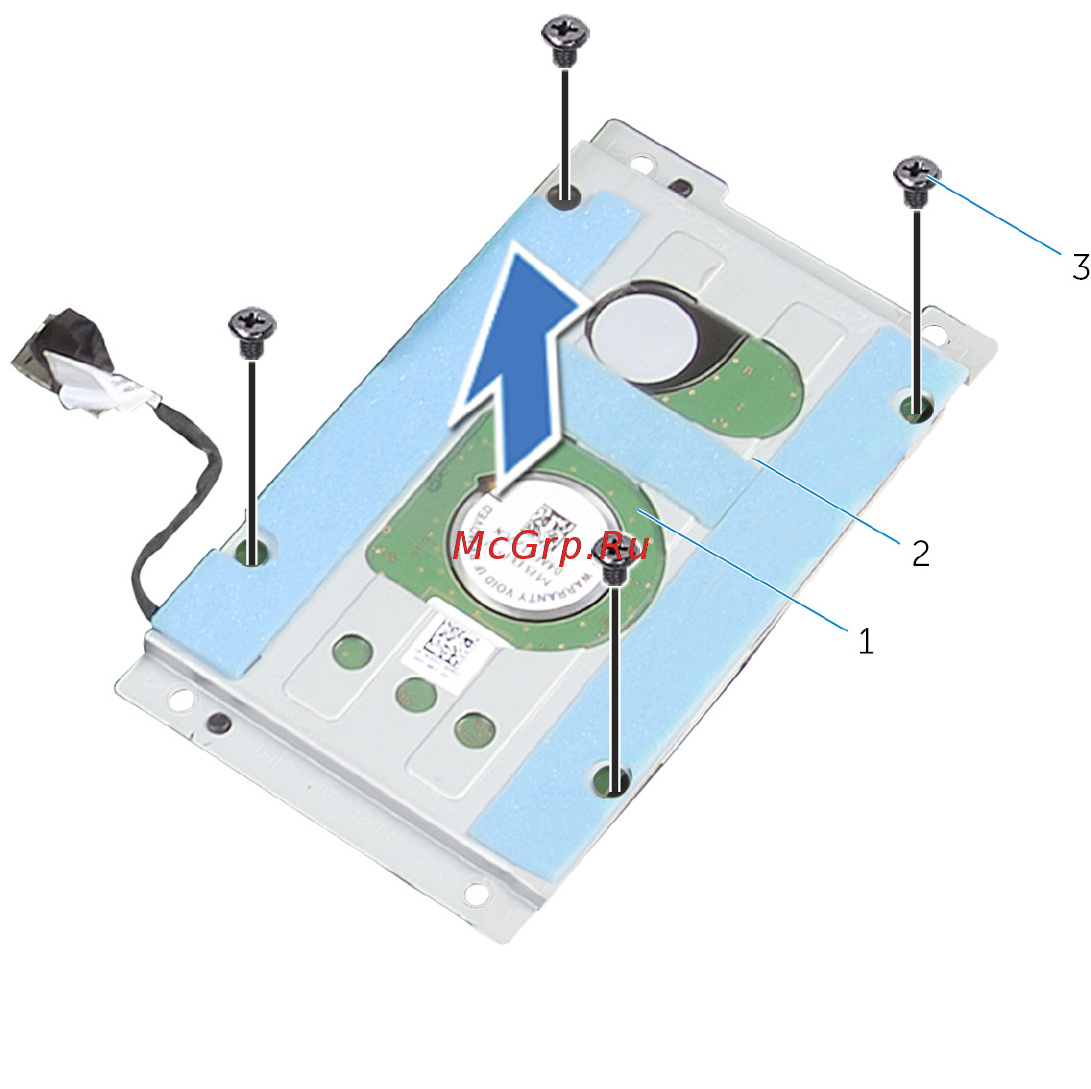

7 Lift the hard-drive bracket off the hard-drive assembly.
1 hard-drive assembly 2 hard-drive bracket
3 screws (4)
30
