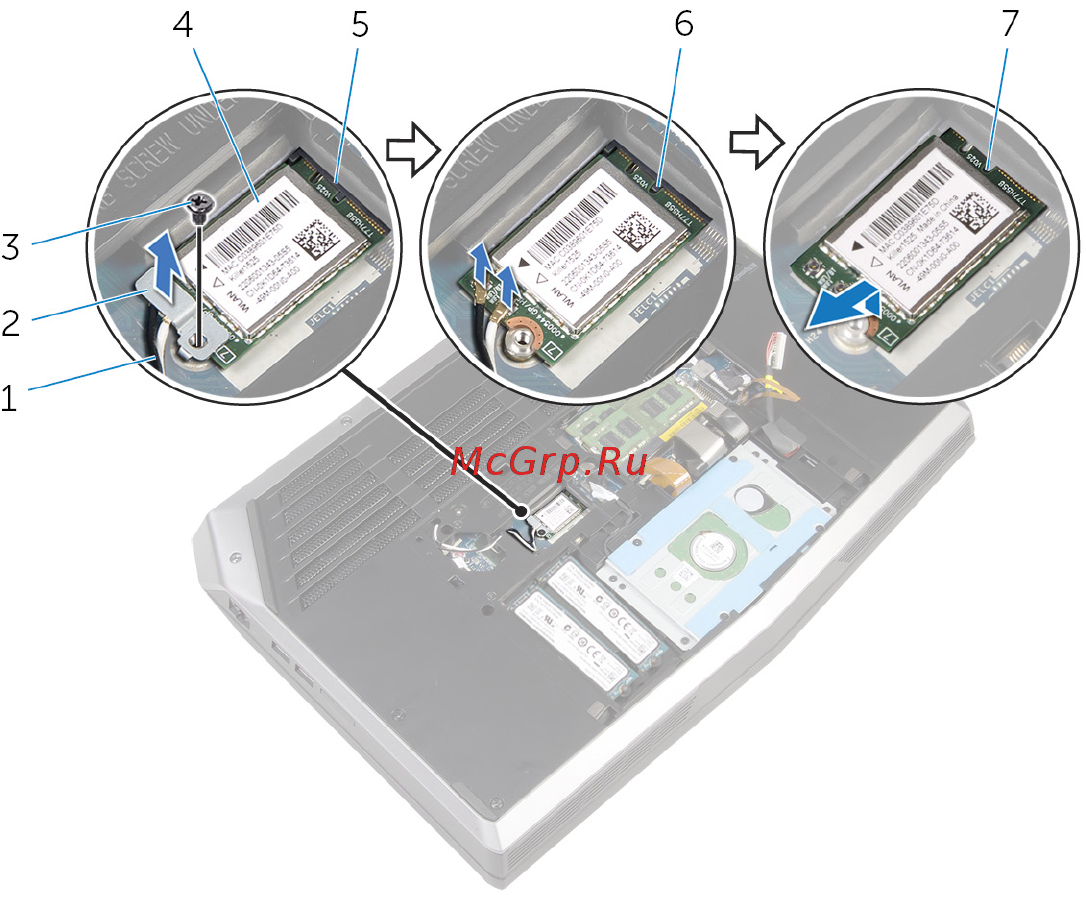

4 Lift and slide the wireless card out of the wireless-card slot.
1 antenna cables (2) 2 wireless-card bracket
3 screw 4 wireless card
5 wireless-card slot 6 tabs (2)
7 notches (2)
34
