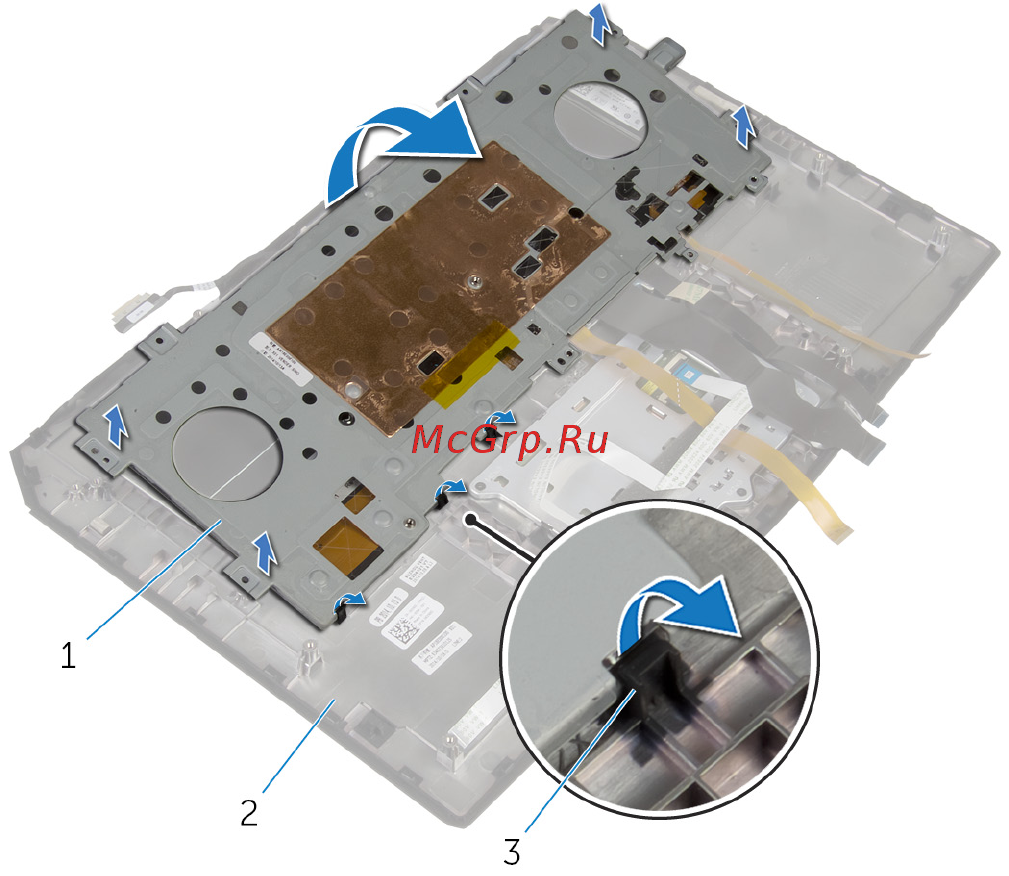

4 Lift the keyboard bracket at an angle and remove it from the tabs on the
palm-rest assembly.
1 keyboard bracket 2 palm-rest assembly
3 tabs (3)
52
