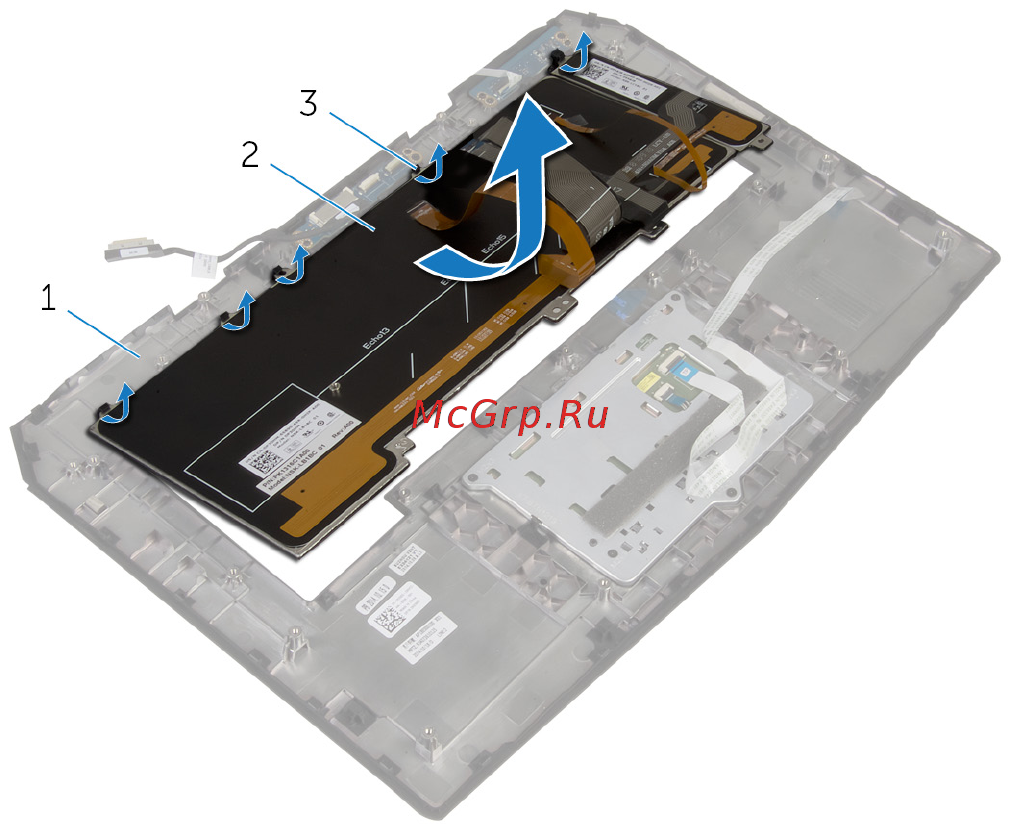

6 Lift the keyboard at an angle and remove it from the tabs on the palm-rest
assembly.
1 palm-rest assembly 2 keyboard
3 tabs (5)
54
