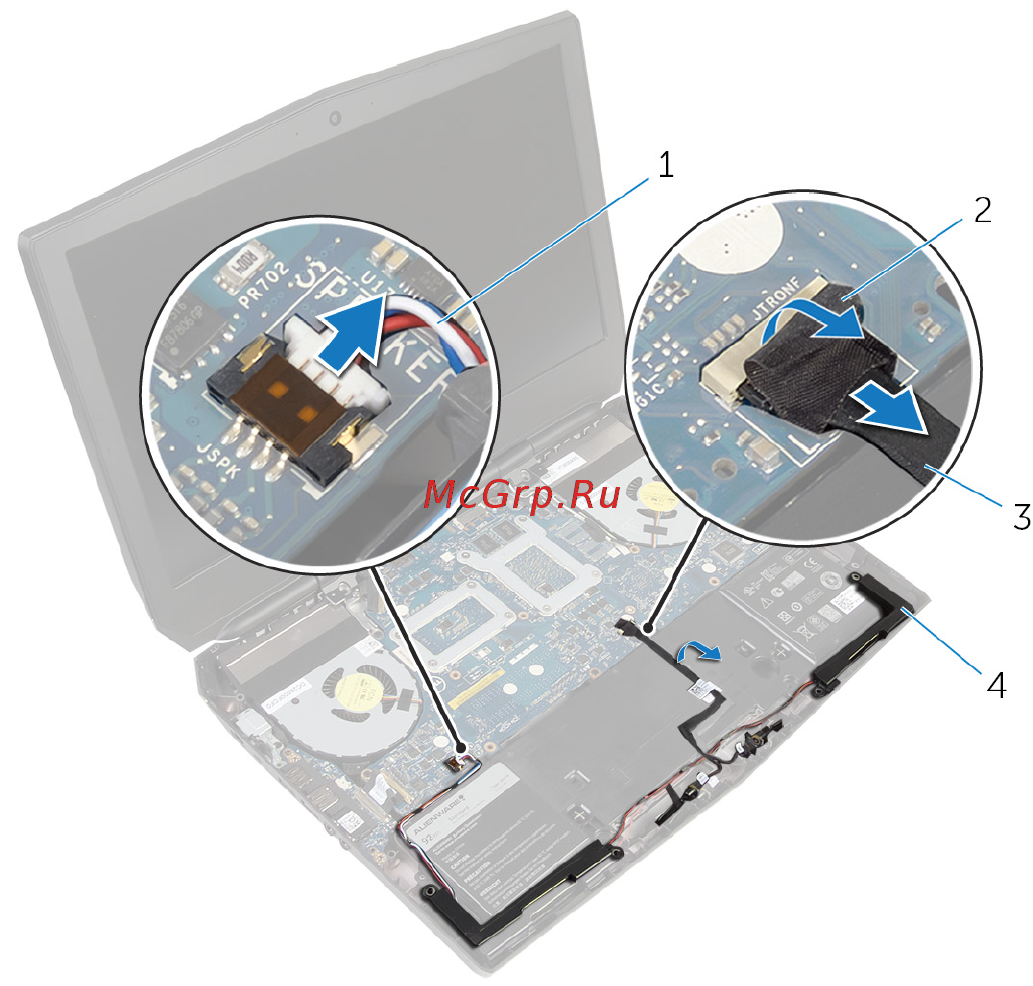

3 Note the front AlienFX LED cable routing and peel off the cable from the
battery.
1 speaker cable 2 tape
3 front AlienFX LED cable 4 speakers (2)
4 Remove the speaker cable from the routing guides on the battery and
computer base.
68
