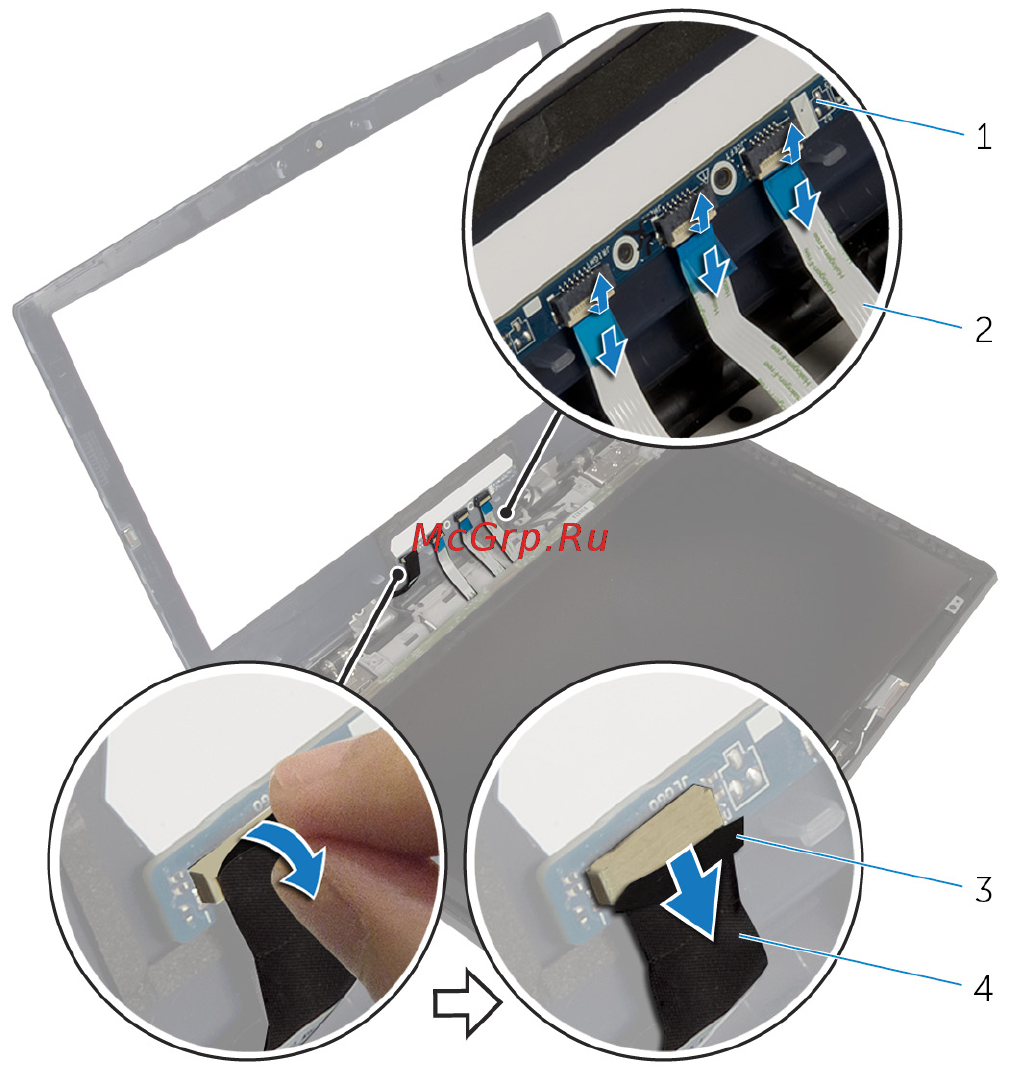

4 Peel off the adhesive tape and disconnect the logo-board cable from the
logo board.
1 logo board 2 display-board cables (3)
3 adhesive tape 4 logo-board cable
85
