Appendix
- 118 -

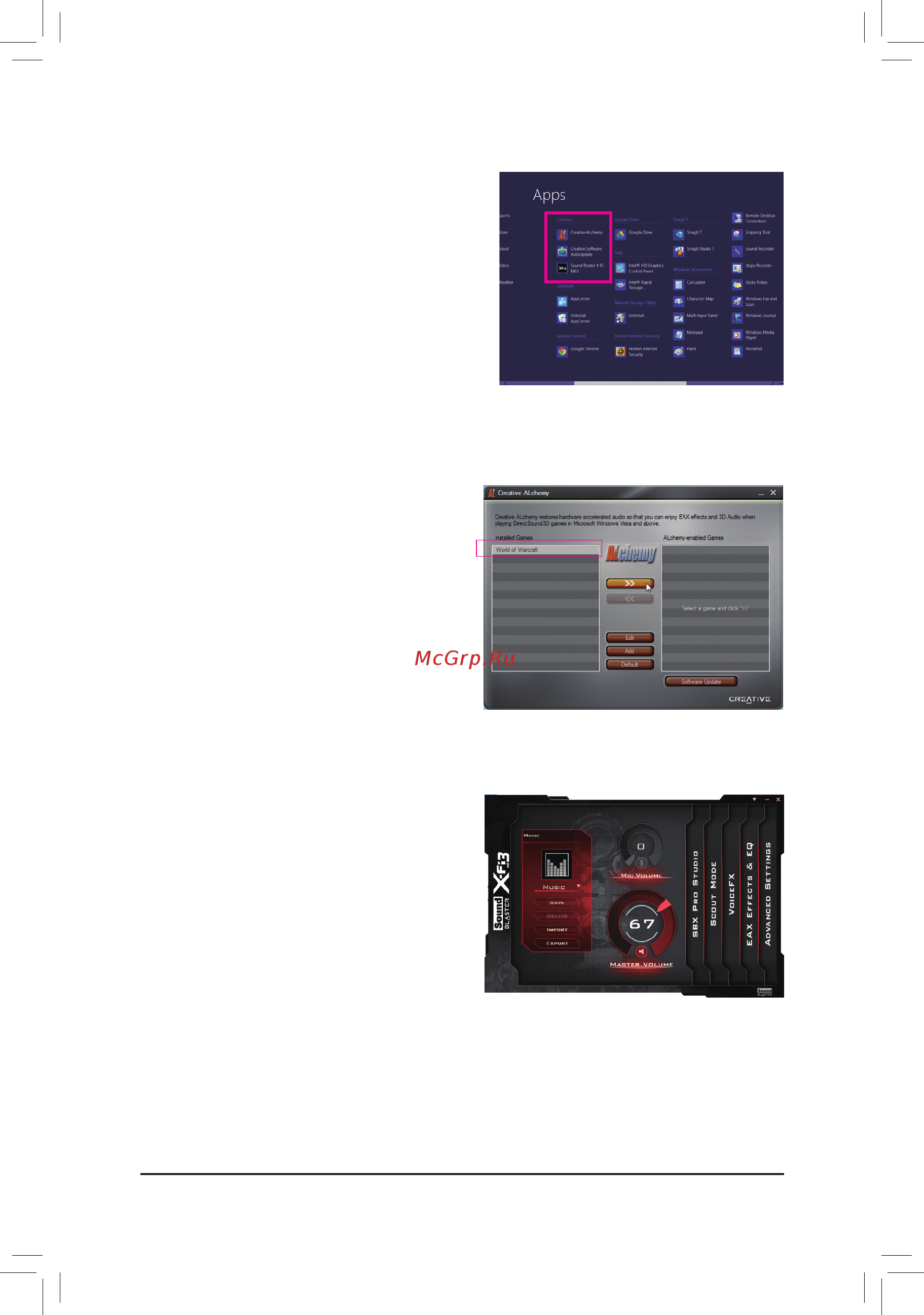

Afterinstallingtheaudiodriver,youcanndtheCreative
Software Suite in Apps\All Programs\Creative. The
Creative Software Suite includes the Creative Audio
Control Panel, Creative Software AutoUpdate, Alchemy,
and Sound Blaster X-Fi.
6-2-5 Creative Software Suite
Creative Alchemy
Through the Creative Alchemy, you can enable EAX effects for your games to obtain the most realistic gaming
experience.
Go to Apps\All Programs\Creative\Alchemy to launch
Creative Alchemy. On the left panel, select the game for
which you want to enable the EAX effects and add it to
the right panel. You will see the EAX effects are enabled
when the game is launched.
Sound Blaster X-Fi MB3
Go to Apps>Creative to open the Sound Blaster X-Fi MB3.
Music:
This page allows you to save your settings on the
SBXPROSTUDIO, SCOUT MODE, VOICEFX, EAX
EFFECTS & EQ, or ADVANCED SETTINGS page to a
prole.Youcanexportyourcustomsettingsandshare
them with others or import others' custom settings.
