BIOS Setup

- 42 -

(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.Formoreinformationabout

Intel

CPUs' unique features, please visit Intel's website.

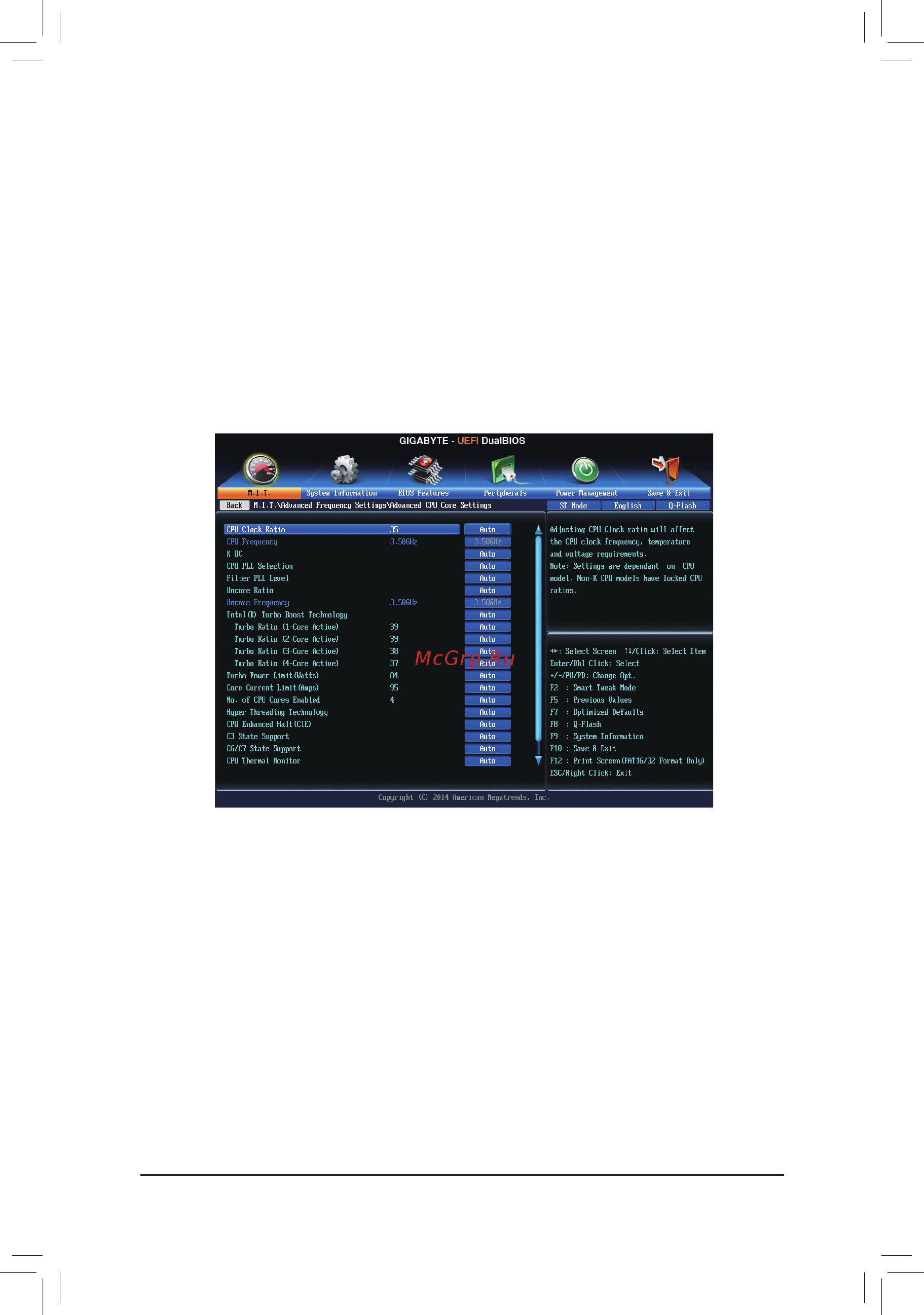

` AdvancedCPUCoreSettings

& Processor Graphics Clock

 Allowsyoutosettheonboardgraphicsclock.Theadjustablerangeisfrom400MHzto4000MHz.(Default:

Auto)

& CPUUpgrade

(Note)

 AllowsyoutosettheCPUfrequency.OptionsmayvarydependingontheCPUbeingused.(Default:Auto)

& CPUClockRatio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

& CPUFrequency

Displays the current operating CPU frequency.

& CPUClockRatio,CPUFrequency

The settings above are synchronous to those under the same items on the AdvancedFrequencySettings

menu.

& K OC

(Note)

 AllowsforincreasedperformancebyusingcertainCPUs.(Default:Auto)

& CPUPLLSelection

Allows you to set the CPU PLL. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)

& Filter PLL Level

Allows you to set the Filter PLL. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)

& UncoreRatio

Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used.

& UncoreFrequency

Displays the current CPU Uncore frequency.
