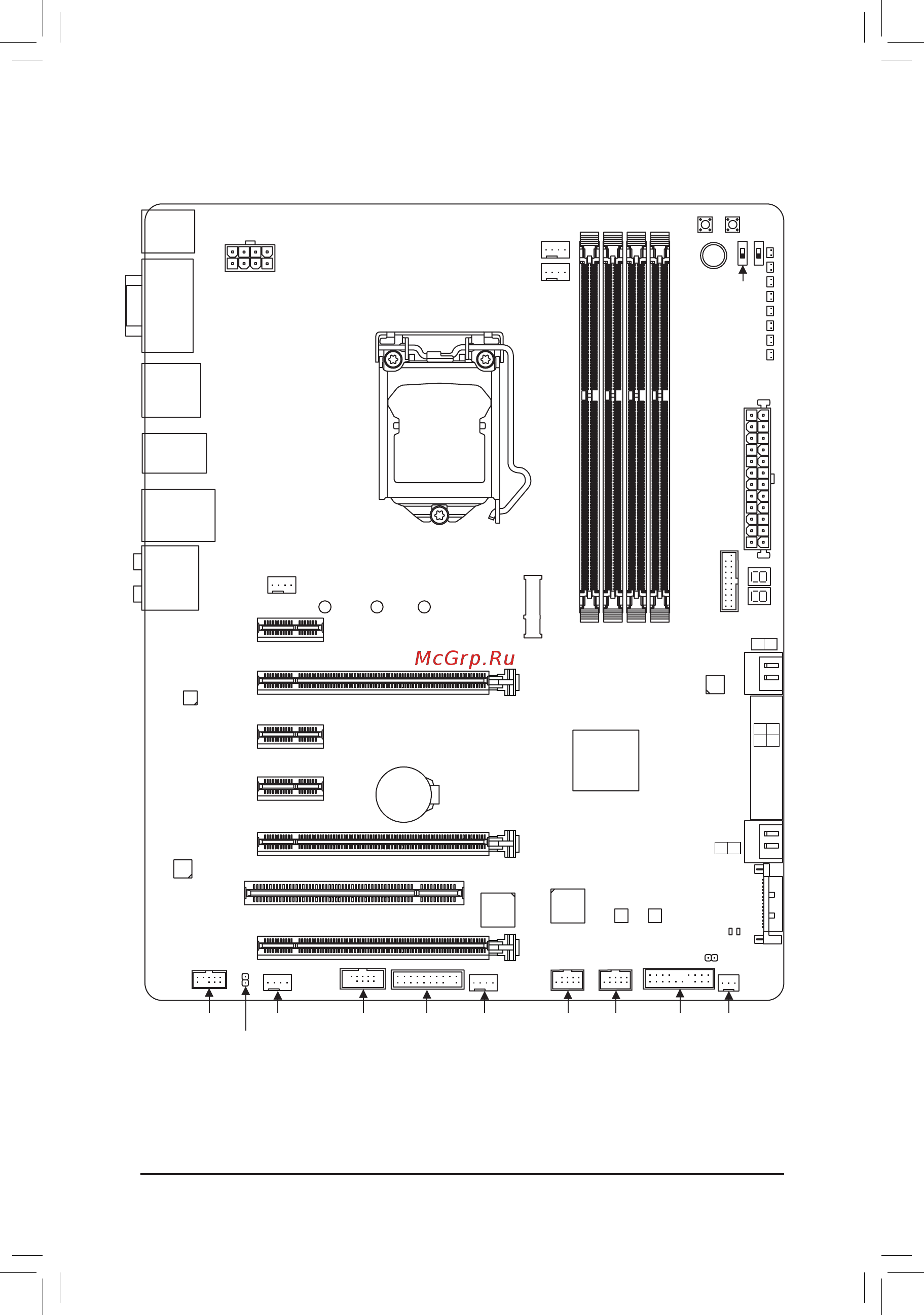

GA-Z97X-Gaming 7 Motherboard Layout
F_USB30
KB_MS
CPU_FAN
LGA1150
ATX
AUDIO
DDR3_4
DDR3_2
DDR3_3
DDR3_1
BAT
ATX_12V_2X4
Intel
®
Z97
CODEC
CLR_CMOS
M_BIOSB_BIOS
DVI
VGA
USB30
LAN
PCIEX16
PCIEX8
PCIEX1_2
PCIEX1_1
PCI
PCIEX4
PCIEX1_3
CPU_OPT
SYS_FAN1
M.2
Qualcomm
®
Atheros Killer
E2201 LAN
PCIe to PCI
Bridge
GA-Z97X-Gaming 7
R_USB
HDMI
R_USB30
F_PANELF_USB2 F_USB1
SYS_FAN2 SYS_FAN3 SYS_FAN4
SPDIF_O
F_AUDIO TPMCOMA
SATA3
GSATA3
iTE
®
Super I/O
1
0
7
6
CMOS_SW
PW_SW
BIOS_SW
SB
RST_SW
Debug LED
(Note)
ATX4P
(Note) Fordebugcodeinformation,pleaserefertoChapter6.
Marvell
®
88SE9172
SATA3
3 2
5 4
SATA_EXPRESS
MBIOS_LED
BBIOS_LED
