- 19 -
Hardware Installation
1-6 Setting up AMD CrossFire
™
/NVIDIA
®
SLI
™
Conguration
(Note) Thebridgeconnector(s)maybeneededornotdependingonyourgraphicscards.
• Procedure and driver screen for enabling CrossFire/SLI technology may differ by graphics cards and driver
version. Refer to the manual that came with your graphics cards for more information about enabling CrossFire/
SLI technology.
• When two or more graphics cards are installed, we recommend that you connect the SATA power cable from the
power supply to the ATX4P connector to ensure system stability.
A.SystemRequirements
- Windows 8.1/8/7 operating system
- A CrossFire/SLI-supported motherboard with two PCI Express x16 slots and correct driver
- CrossFire/SLI-ready graphics cards of identical brand and chip and correct driver
(CurrentGPUsthatsupport3-WayCrossFiretechnologyincludetheATIRadeon
™
HD 3800, HD 4800, HD
5800 series, and AMD Radeon
™
HD 6800, HD 6900, HD 7800, and HD 7900 series. For the latest GPU
supportinformation,pleaserefertotheAMDwebsite.)
- CrossFire
(Note)
/SLI bridge connectors
- Apowersupplywithsufcientpowerisrecommended(Refertothemanualofyourgraphicscardsforthe
powerrequirement)
B.ConnectingtheGraphicsCards
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install CrossFire/SLI graphics cards on the PCI
Expressx16slots.(To set up a 2-Wayconguration,werecommendinstallingthegraphicscardsonthe
PCIEX16andPCIEX8slots.)
Step 2:
Insert the CrossFire
(Note)
/SLI bridge connectors in the CrossFire/SLI gold edge connectors on top of the cards.
Step 3:
Plug the display cable into the graphics card on the PCIEX16 slot.

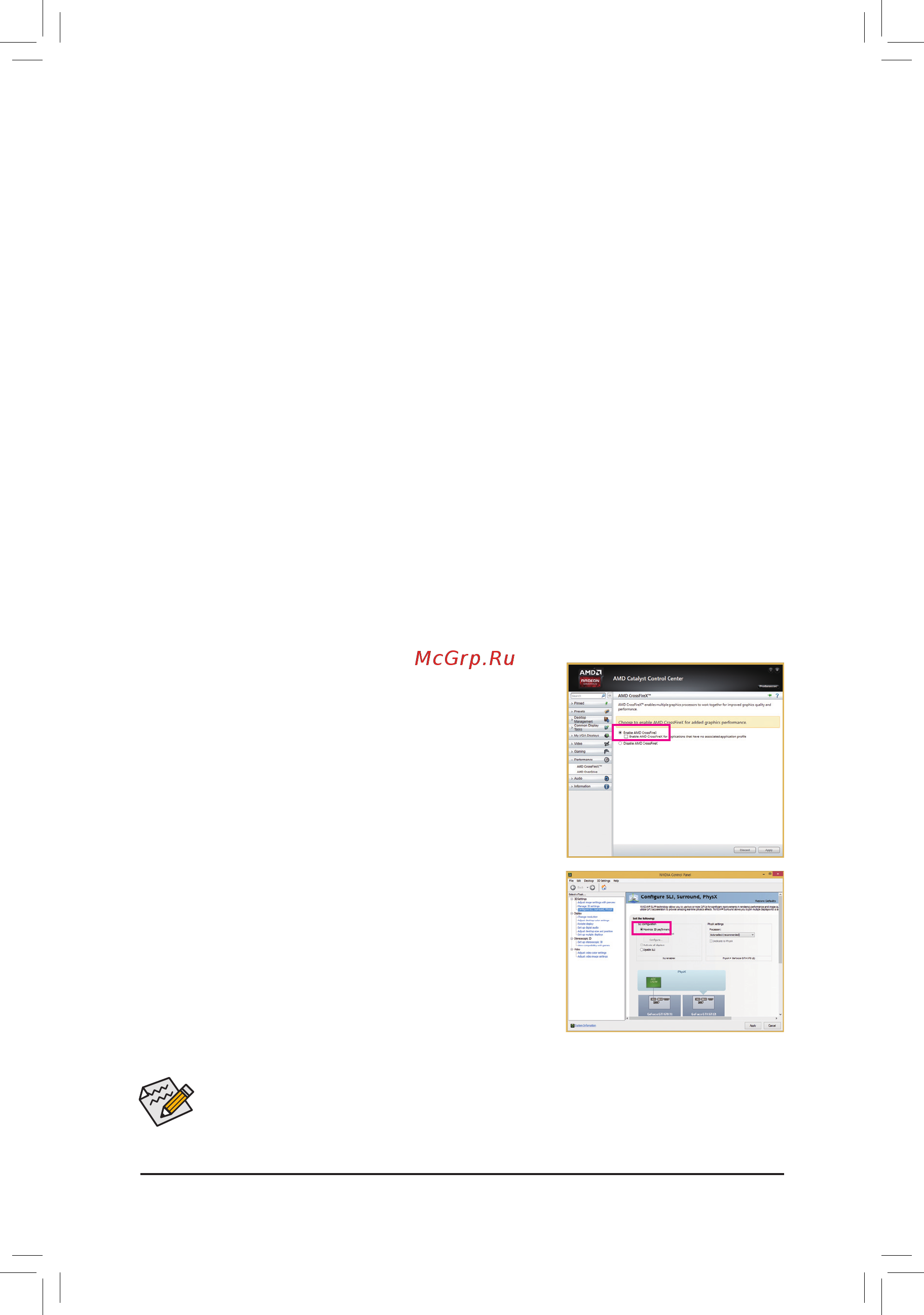

C.ConguringtheGraphicsCardDriver
C-1.ToEnableCrossFireFunction
After installing the graphics card driver in the operating system, go
to the AMD Catalyst Control Center. Browse to Performance\AMD
CrossFireX
™
and ensure the Enable CrossFireX check box is selected.
Select the GPU combination you want to use and click Apply.(Available
combinationoptionsaredependentonthenumberofgraphicscards.)
C-2.ToEnableSLIFunction
After installing the graphics card driver in the operating system, go to
the NVIDIA Control Panel. Browse to the CongureSLI,Surround,
Physx screen and ensure Maximize 3D performance is enabled.
