Chapter 2 Hardware Description and Connection

GS1100 Series User’s Guide

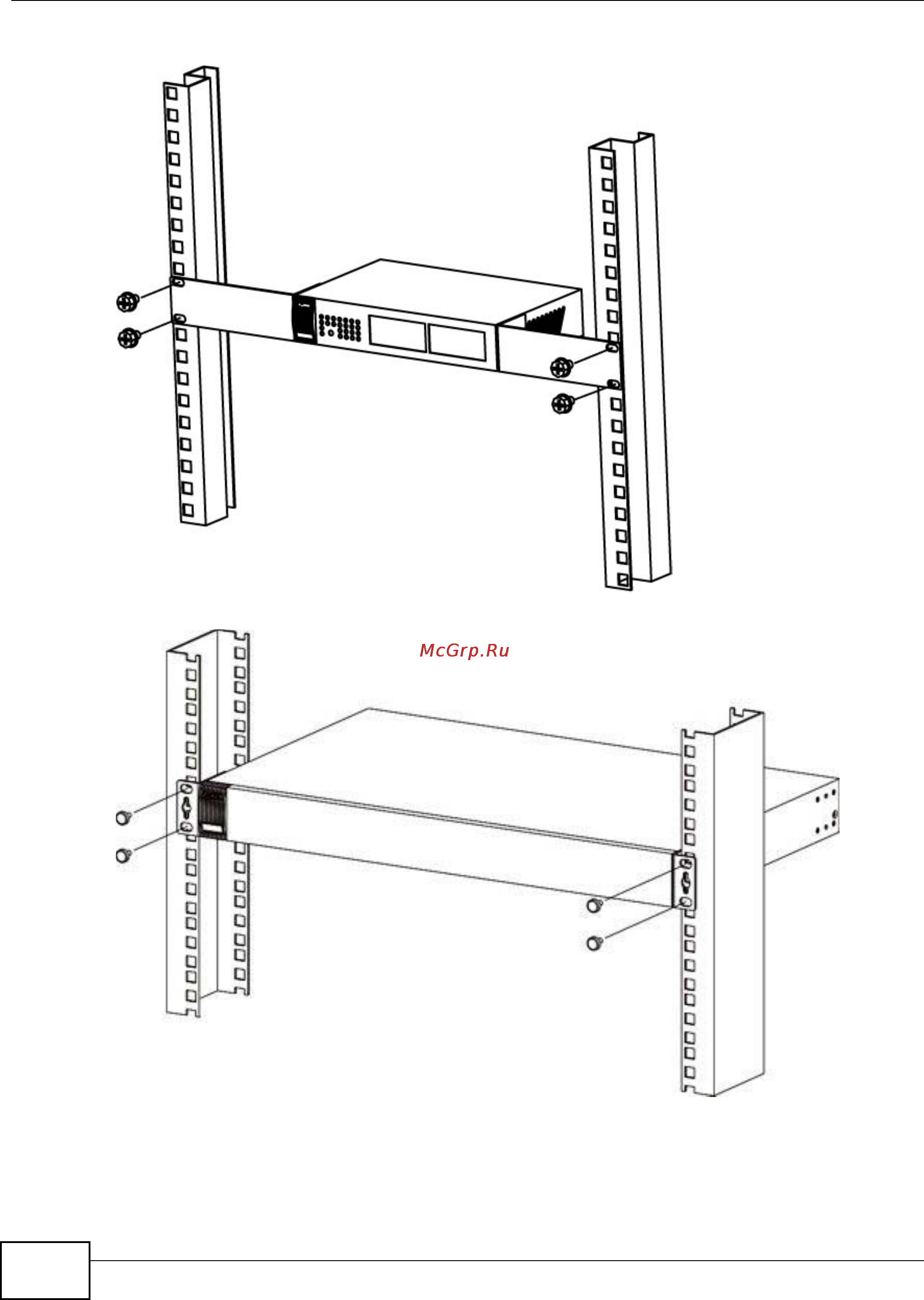

Figure 14 Mounting the Switch on a Rack (GS1100-16)

Figure 15 Mounting the Switch on a Rack (GS1100-24)

2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes

into the rack.

3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
