Appendix A Importing Certificates
NWA5000 / WAC6000 Series User’s Guide
198

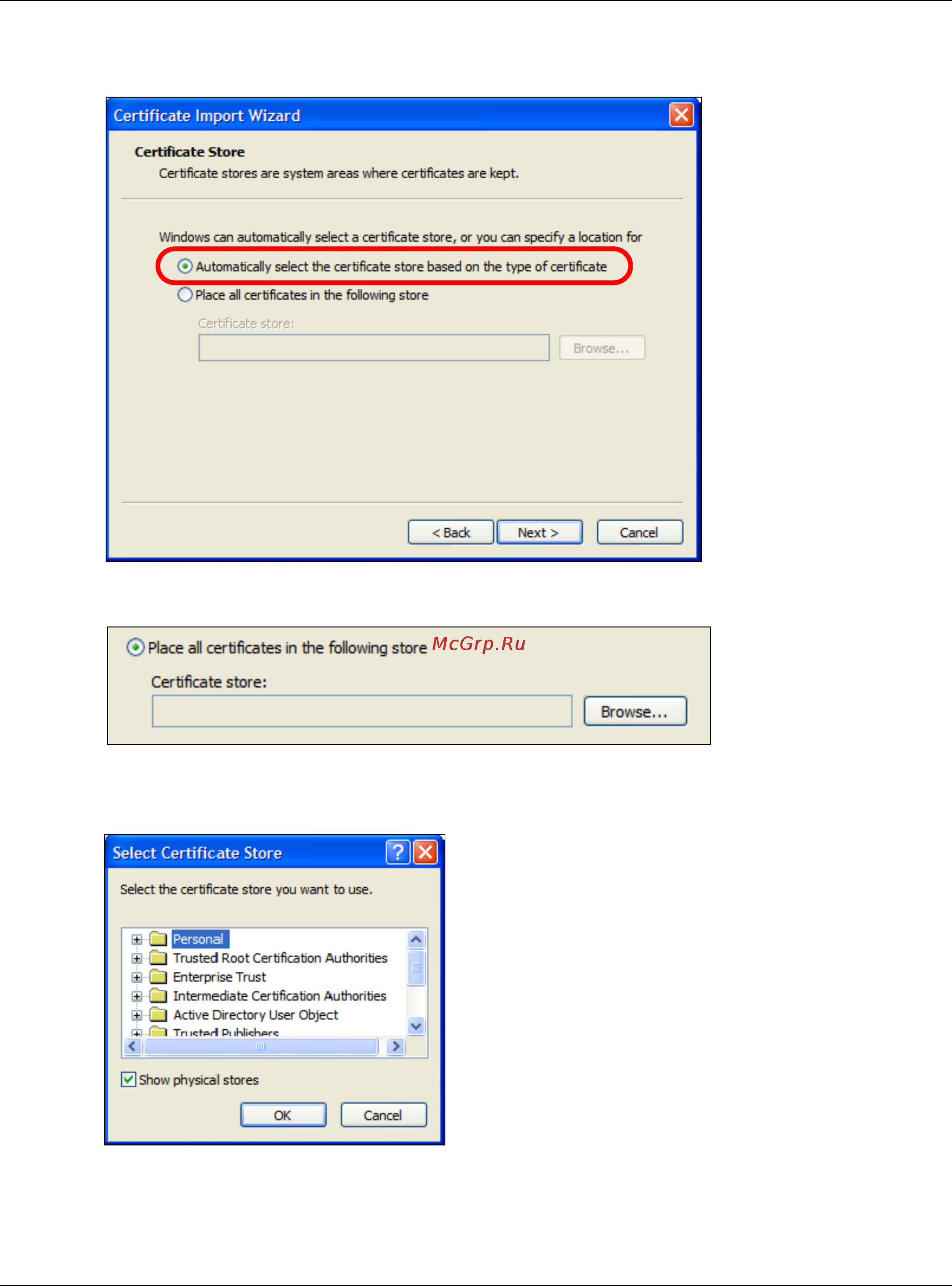

6 If you want Internet Explorer to Automatically select certificate store based on the type of
certificate, click Next again and then go to step 9.
7 Otherwise, select Place all certificates in the following store and then click Browse.
8 In the Select Certificate Store dialog box, choose a location in which to save the certificate and
then click OK.
