Appendix A Importing Certificates
NWA5000 / WAC6000 Series User’s Guide
199

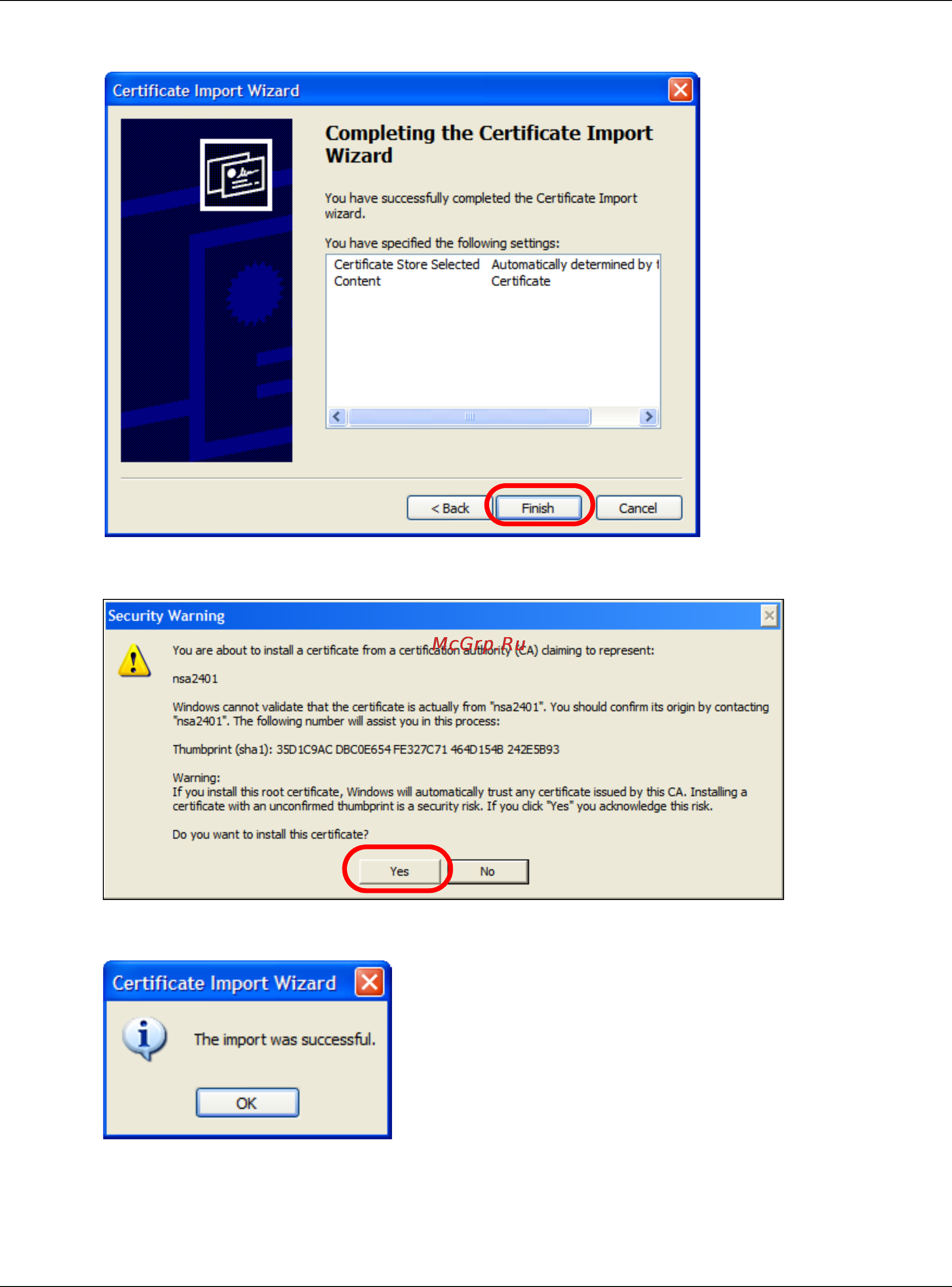

9 In the Completing the Certificate Import Wizard screen, click Finish.
10 If you are presented with another Security Warning, click Yes.
11 Finally, click OK when presented with the successful certificate installation message.
