NWA3000-N Series CLI Reference Guide
43
CHAPTER 6
AP Management
This chapter shows you how to configure wireless AP management options on your
NWA3000-N Series AP.
6.1 AP Management Overview
The NWA3000-N Series AP allows you to remotely manage all of the wireless station Access
Points (APs) on your network. You can manage a number of APs without having to configure
them individually as the NWA3000-N Series AP automatically handles basic configuration for
you.
The commands in this chapter allow you to add, delete, and edit the APs managed by the
NWA3000-N Series AP by means of the CAPWAP protocol. An AP must be moved from the
wait list to the management list before you can manage it. If you do not want to use this
registration mechanism, you can disable it and then any newly connected AP is registered
automatically.
The following figure illustrates a CAPWAP wireless network. The user (U) configures the
controller AP (C), which then automatically updates the configurations of the managed APs
(M1 ~ M4).

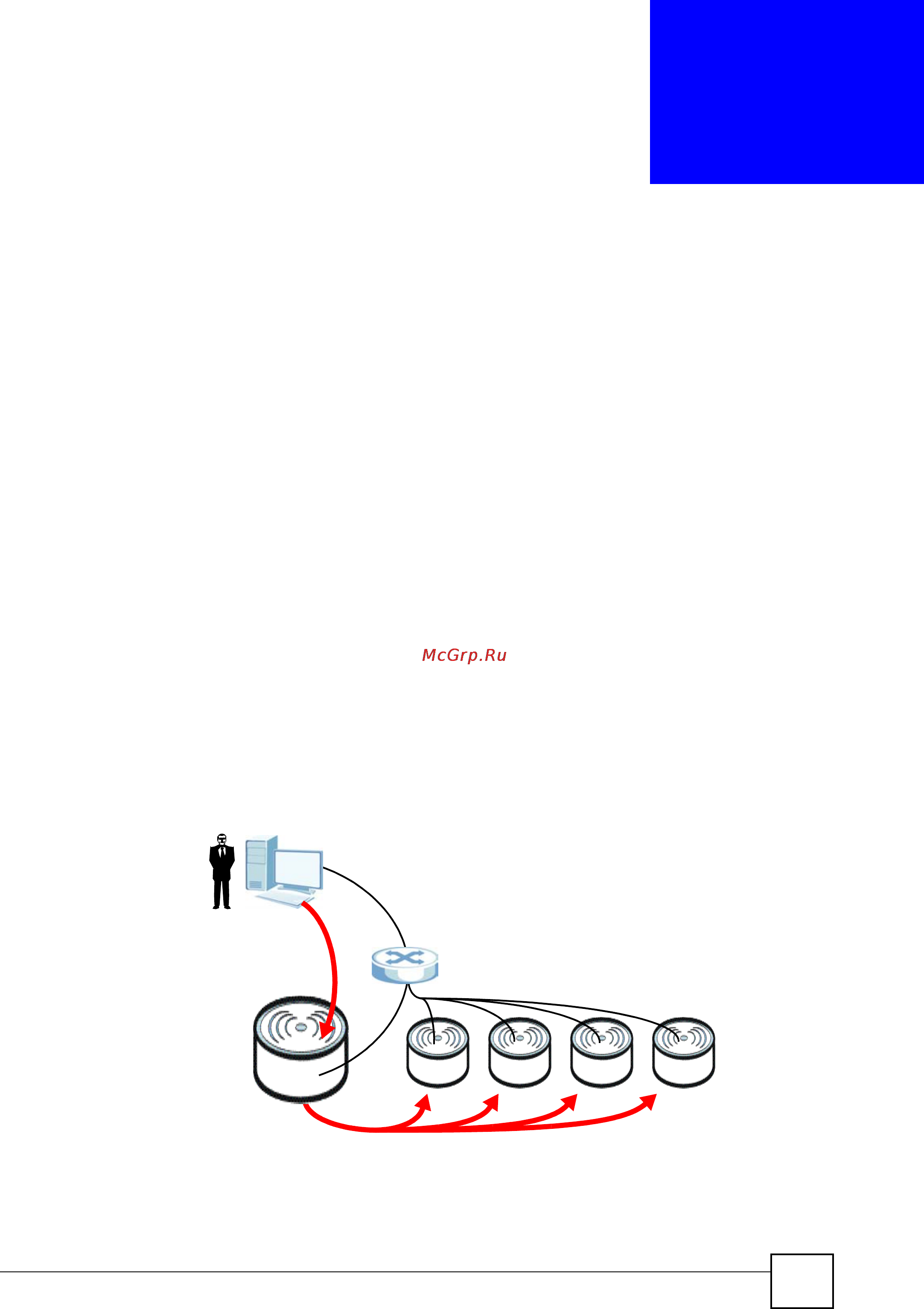

Figure 10 CAPWAP Network Example
Let’s say one AP (M3) starts giving you trouble. You can log into the NWA3000-N Series AP
via console or Telnet and troubleshoot, such as viewing its traffic statistics or reboot it or even
remove it altogether from the list of viable APs that stations can use.
U
C
M1 M2 M3 M4
