ZyWALL USG Support Notes
111
All contents copyright (c) 2010 ZyXEL Communications Corporation.

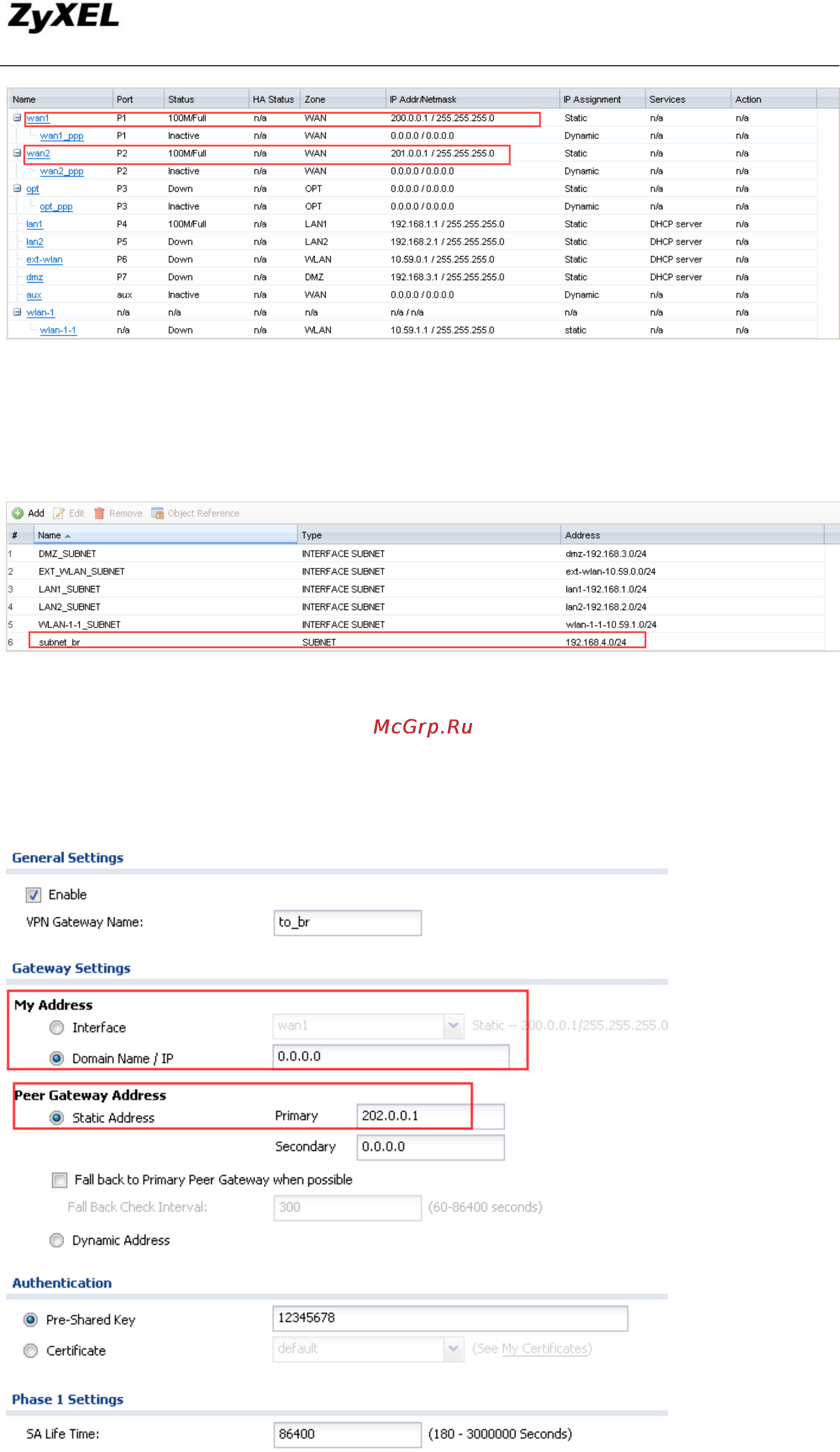

Step2. Go to Configuration > Object > Address, add address object for branch office
local subnet subnet_br (192.168.4.0/24).
Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add VPN phase1
rule for tunnel to branch office.
My Address: Domain Name/IP 0.0.0.0
Peer Gateway Address: Branch WAN IP (202.0.0.2)
