ZyWALL USG Support Notes
126
All contents copyright (c) 2010 ZyXEL Communications Corporation.

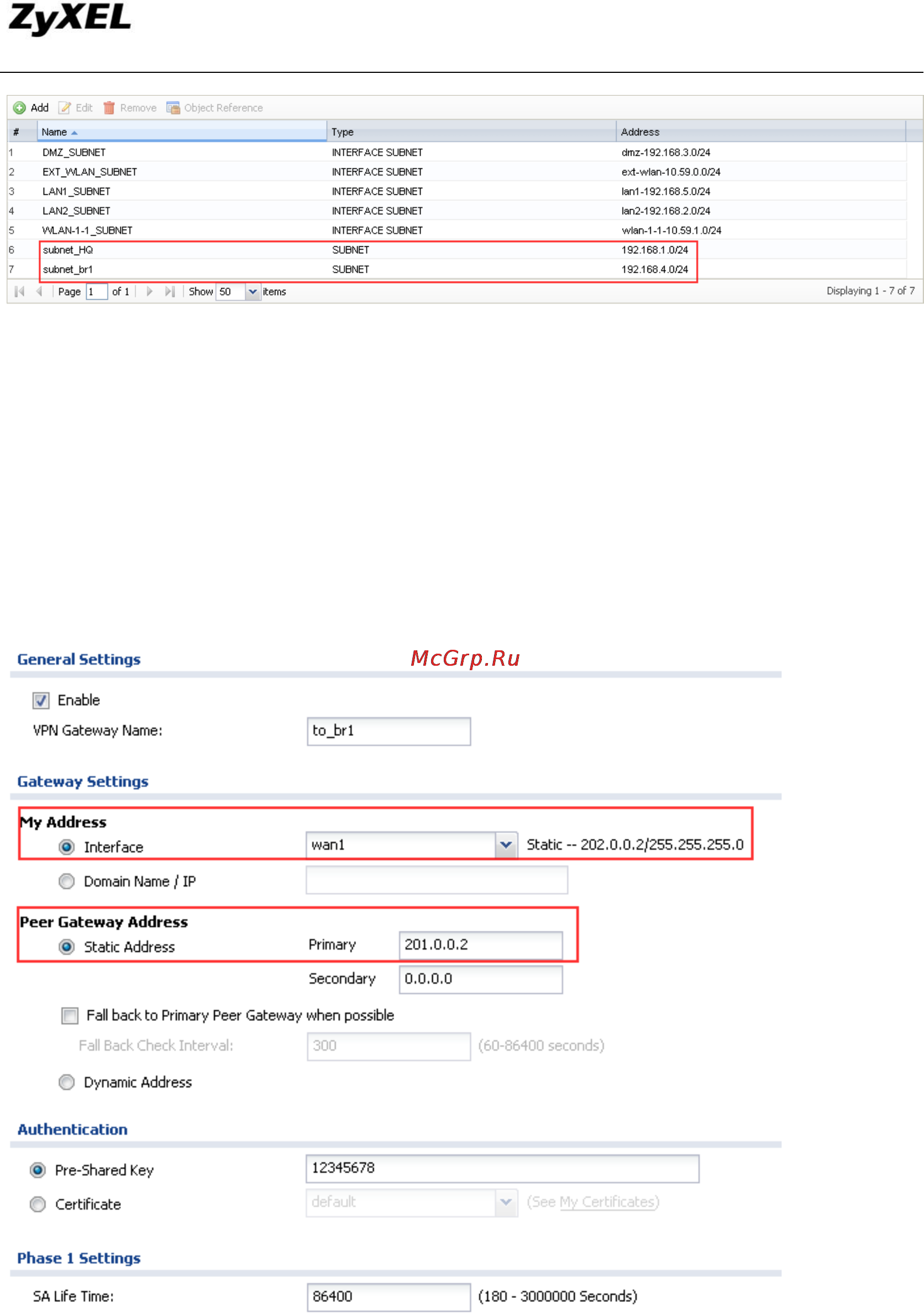

Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add phase 1 VPN
rules.
Tunnel to Br1 phase1 rule:
My Address: WAN1 IP (202.0.0.2)
Peer Gateway Address: Br1 WAN IP (201.0.0.2)
Tunnel to HQ phase1 rule:
My Address: WAN2 IP (10.0.0.2)
Peer Gateway Address: HQ WAN2 IP (10.0.0.1)
