ZyWALL USG Support Notes
65
All contents copyright (c) 2010 ZyXEL Communications Corporation.

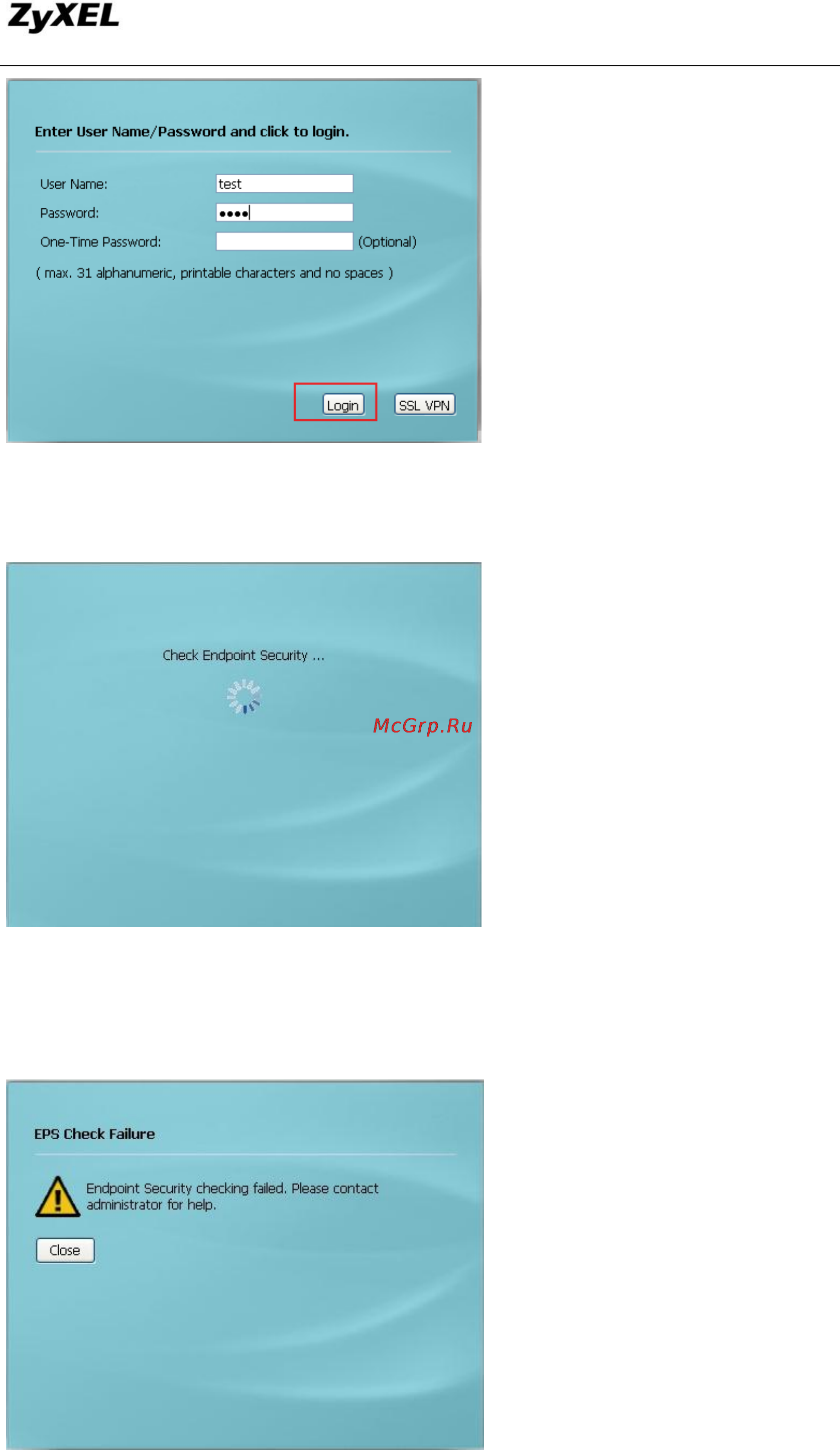

USG will perform the EPS checking action.
If the client‟s environment doesn't comply with the EPS checking criterion, the USG
will give out the message as below.
