ZyWALL USG Support Notes
121
All contents copyright (c) 2010 ZyXEL Communications Corporation.

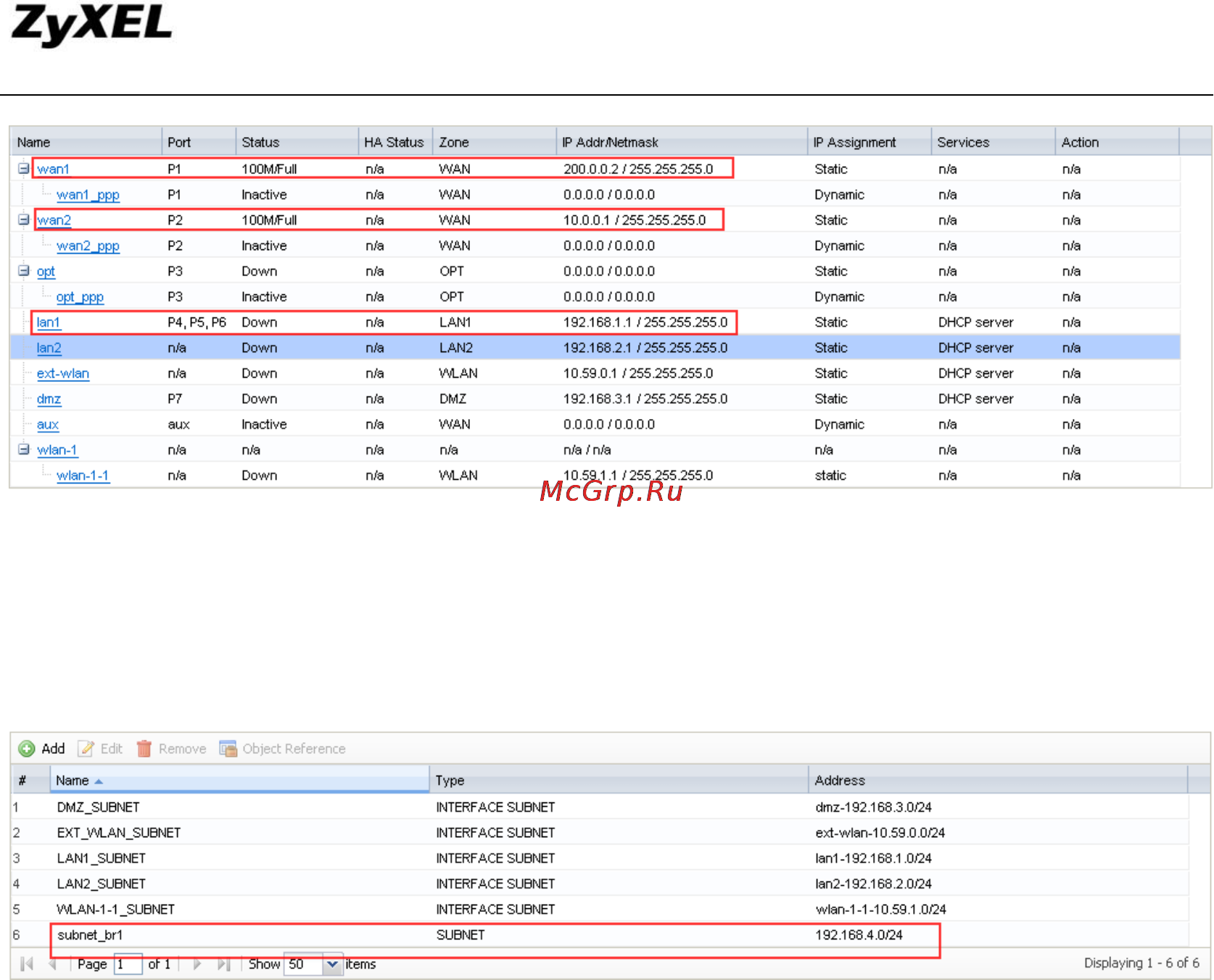

Step2. Go to Configuration > Object > Address, add address object for Br1 subnet.
Subnet_br1 (192.168.4.0/24)
Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add phase 1 rule.
Since when WAN1 is up, it uses WAN1 to build VPN tunnel, when WAN1 is down, it
uses WAN2 to build VPN tunnel, My Address should be set as 0.0.0.0.
When WAN1 is up, peer IP is Br1 WAN IP. When WAN1 is down, it uses WAN2 to
build VPN tunnel, peer IP is Br2 WAN2 IP. So Peer Gateway Address should be set as
Dynamic Address.
