ZyWALL USG Support Notes
116
All contents copyright (c) 2010 ZyXEL Communications Corporation.

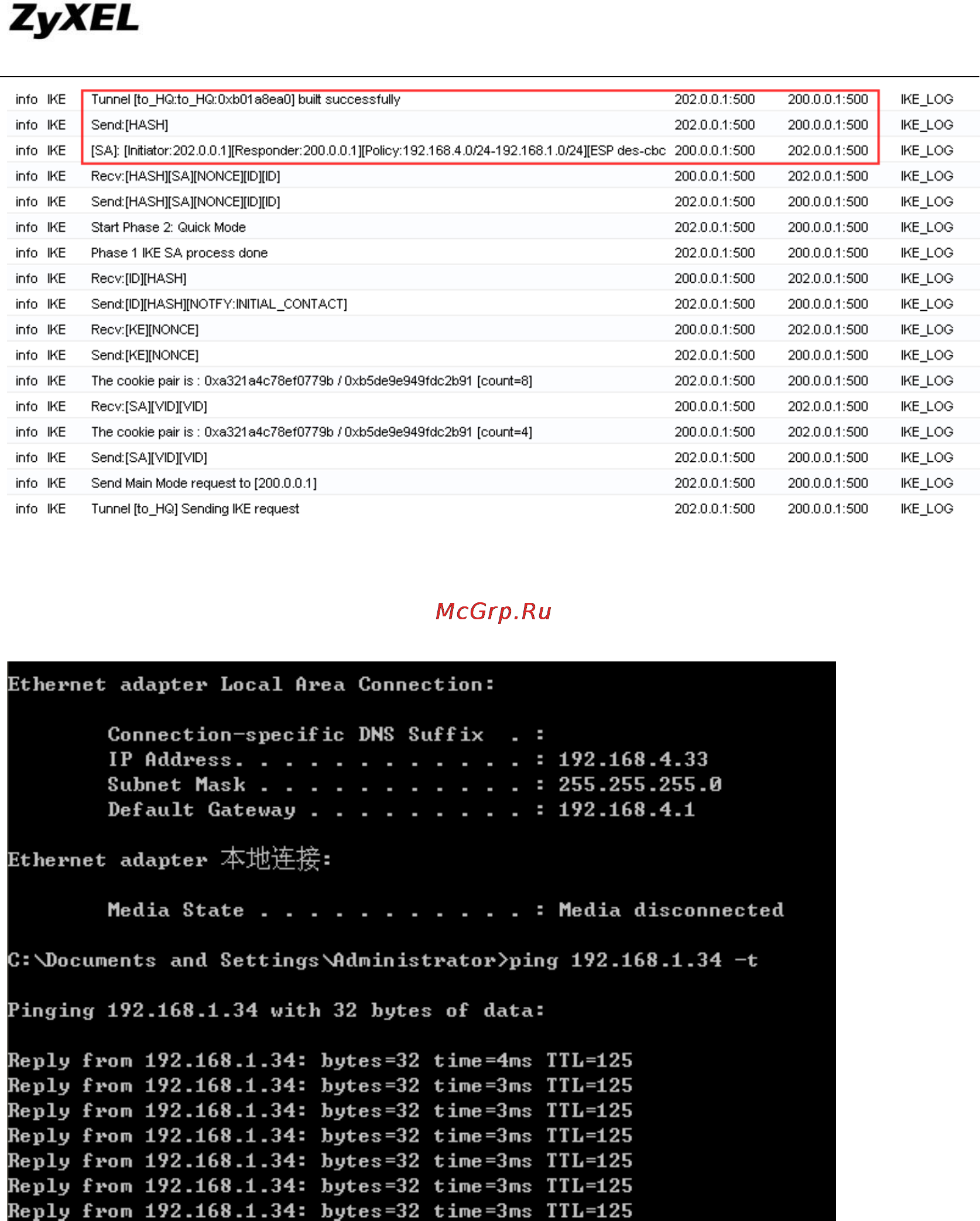

On the PC behind branch office, initiate nonstop ping to a PC behind HQ.
Unplug WAN1 of HQ, the ping times out (tunnel disconnected). After several
timeouts, the ping resumes. The VPN tunnel is built up again.
