ZyWALL USG Support Notes
115
All contents copyright (c) 2010 ZyXEL Communications Corporation.

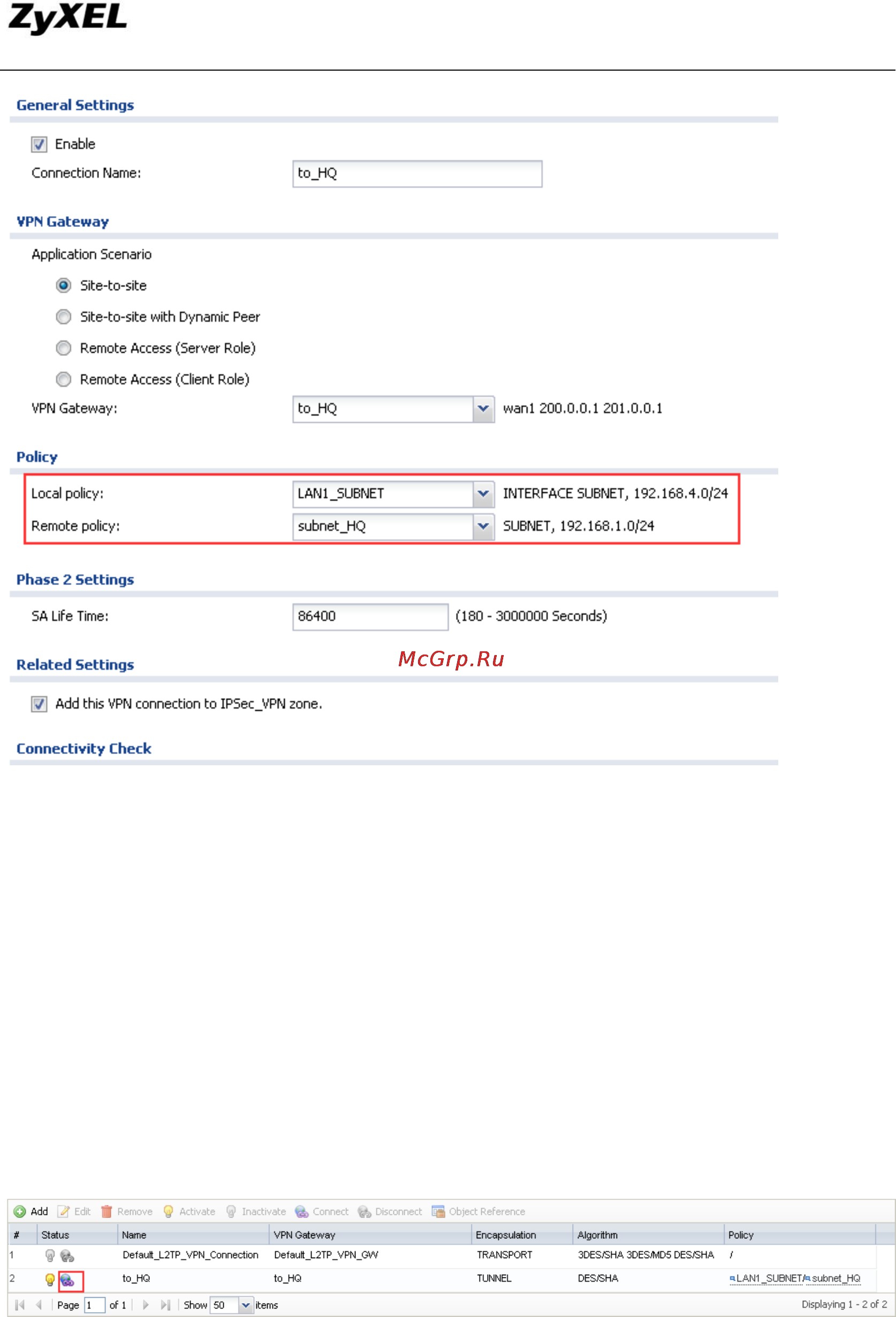

In ZLD v2.20, system will automatically create routes for VPN traffic according to
VPN phase2 (VPN Connection) local/remote policy. Traffic whose source is in the
local policy and destination is in the remote policy will be sent to the corresponding
VPN tunnel. Thus there‟s no need to add policy route.
4.1.3. Scenario Verification
On the branch USG, dial up the tunnel to HQ.
Go to Monitor > Log, check the IKE logs, the tunnel is built up to HQ WAN1.
