IES-1248-51/51A/53 User’s Guide
125
CHAPTER 14
IP Setup
The IP Setup screen allows you to configure a device IP address, subnet mask and DNS
(domain name server) for management purposes.
To open this screen, click Basic Setting > IP Setup.

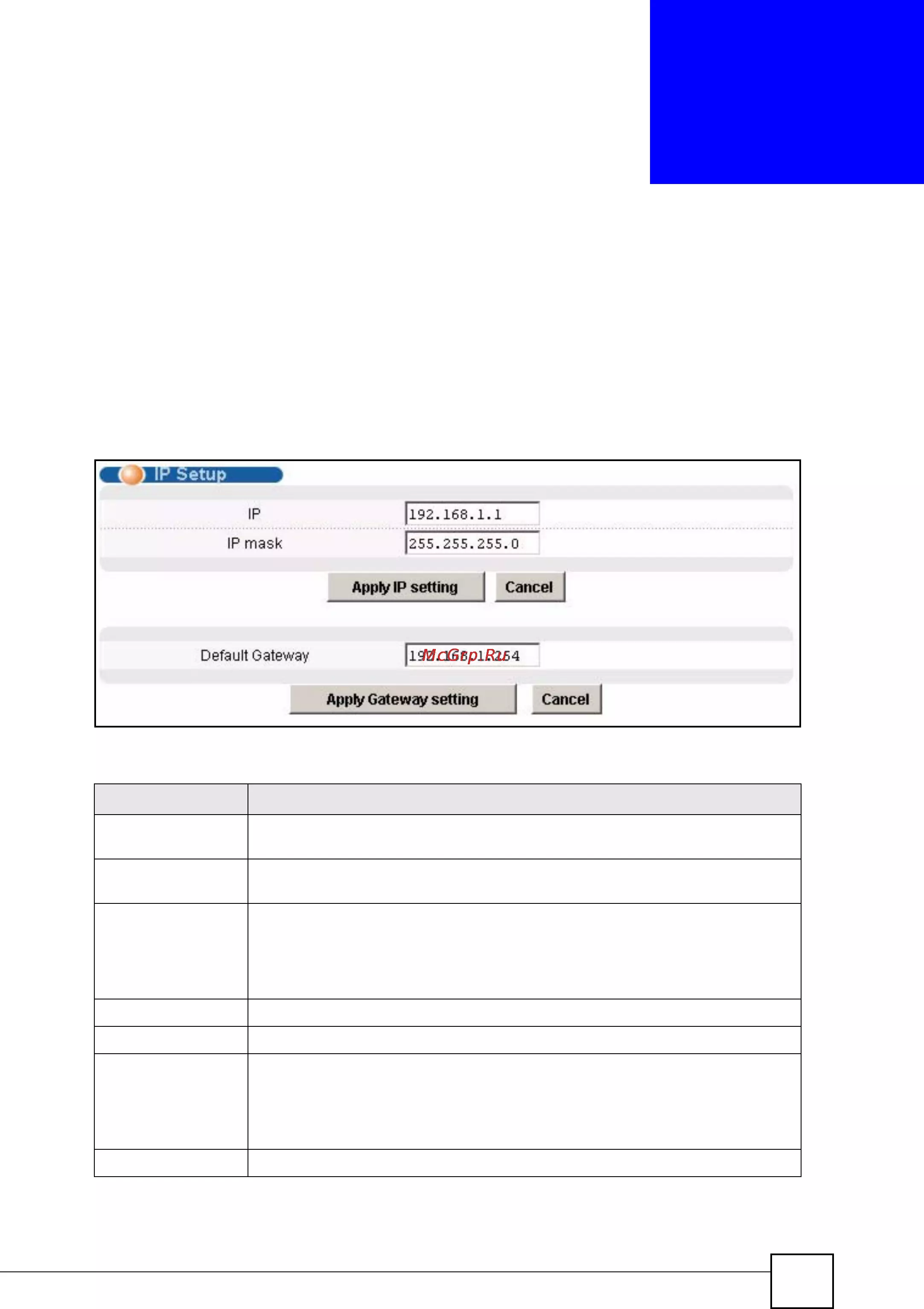

Figure 55 IP Setup
The following table describes the labels in this screen.
Table 16 IP Setup
LABEL DESCRIPTION
IP Enter the IP address of your IES-1248 in dotted decimal notation for example
1.2.3.4.
IP Mask Enter the IP subnet mask of your IES-1248 in dotted decimal notation for
example 255.255.255.0.
Apply IP setting Click Apply IP setting to save your changes to the device’s IP address and/or
subnet mask to the IES-1248’s volatile memory. The IES-1248 loses these
changes if it is turned off or loses power, so use the Config Save link on the
navigation panel to save your changes to the non-volatile memory when you are
done configuring.
Cancel Click Cancel to begin configuring the fields again.
Default Gateway Enter the IP address of the default outgoing gateway in dotted decimal notation.
Apply Gateway
setting
Click Apply Gateway setting to save your changes to the device’s IP address
and/or subnet mask to the IES-1248’s volatile memory. The IES-1248 loses
these changes if it is turned off or loses power, so use the Config Save link on
the navigation panel to save your changes to the non-volatile memory when you
are done configuring.
Cancel Click Cancel to begin configuring the fields again.
