DSL-500 ADSL Router User’s Guide

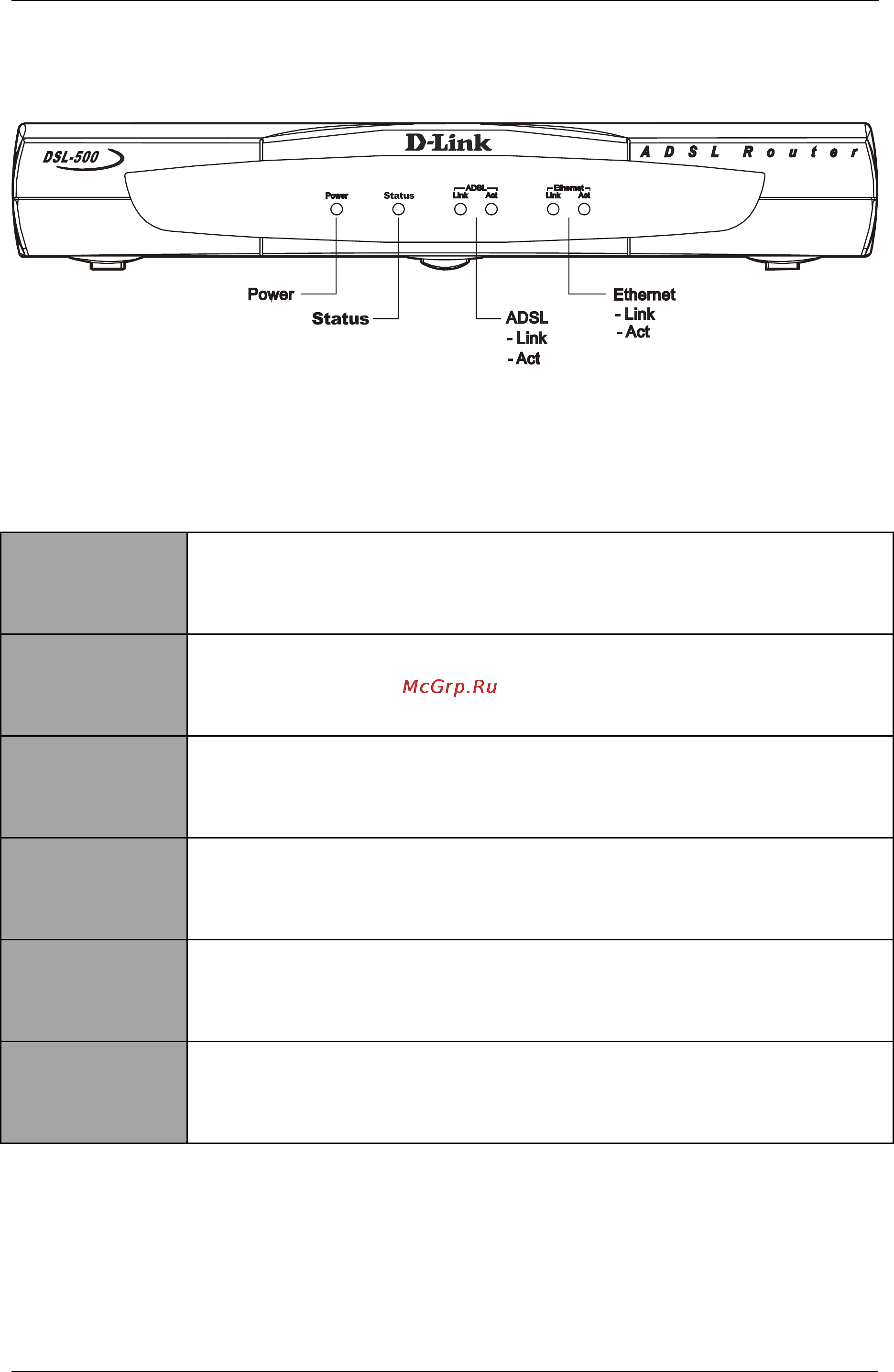

LED Indicators
LED Indicators
The LED Indicators read as follows:
Power Steady green light indicates the unit is powered on.
Status
Lights steady green during the ADSL negotiation phase. Once the
connection status has been settled, the light will blink green.
ADSL: Link
Steady green light indicates a valid ADSL connection. This will light
after the ADSL negotiation process has been settled.
ADSL: Act Blinking green light indicates an active wan session.
Ethernet: Link Steady green light indicates a valid Ethernet connection.
Ethernet: Act Blinking green indicates an active Ethernet session.
6
