DSL-500 ADSL Router User’s Guide

Changing the Connection Type following the PPPoE Configuration section for

more information.

PPPoE Connections

The default connection method used by the Router is Point-to-Point-Protocol over

Ethernet (PPPoE) as defined in RFC 2516. In the PPPoE Configuration window

(shown below) you must to enter the VPI and VCI values, as well as the user

name and password for network account authentication and verification. When

this information is entered, the changes must be saved and the Router restarted.

Follow these steps to establish the PPP and ADSL network connection:

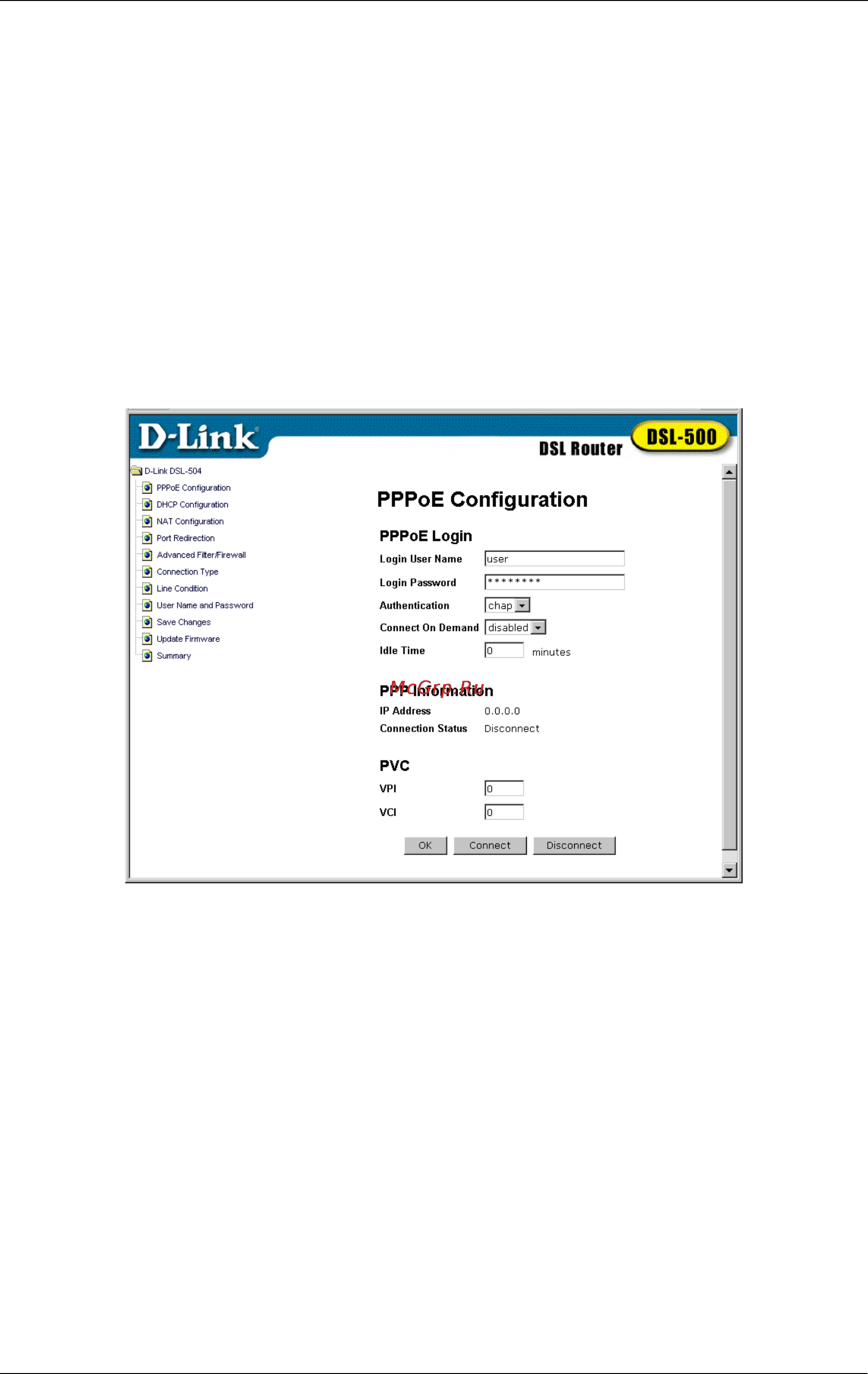

1. Click on the PPPoE Configuration button in the main menu to bring up the

window displayed below:

PPPoE Configuration

2. Under PPPoE Login, enter the Login User Name used for the ADSL

account. The user name and login password, are used to authenticate the

identity of the ADSL client and provide access to the service provider’s

network. The user name and login password can be any combination of up to

64 characters.

3. Enter the Login Password.

4. Unless you are instructed to use a different Authentication method, leave

the default chap protocol selected. The alternative method, pap, can be

selected from the pull-down menu if required by the network service provider.

5. Change the Connect on Demand option to enabled in the pull-down menu.

6. Leave Idle Time set to the default value 0.

7. Under PVC, enter the VPI and VCI values for the Router.
