DSL-500 ADSL Router User’s Guide
Connection Type

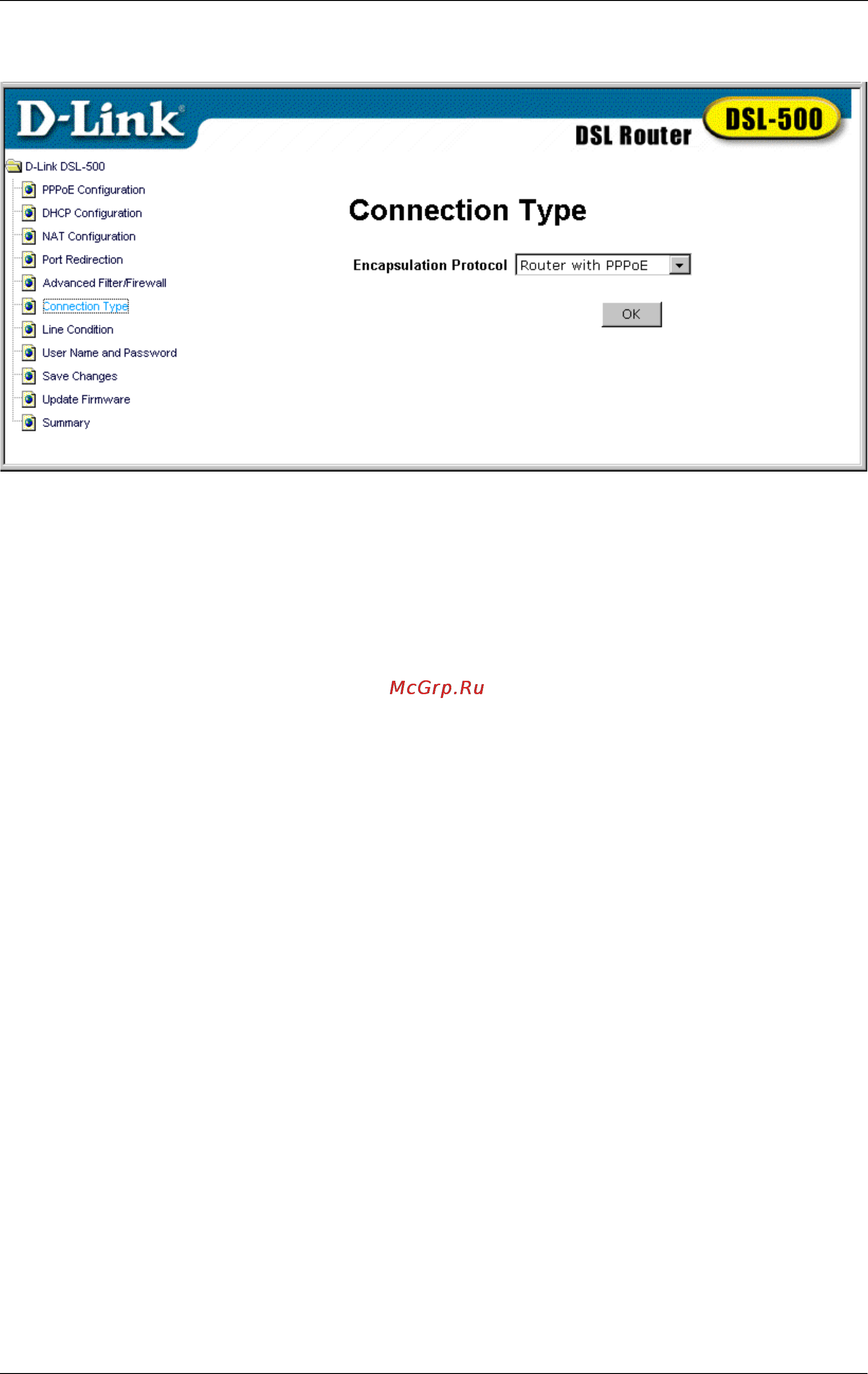

Connection Type Window (PPPoE)
The default connection method used by the Router for the WAN connection is
PPP over Ethernet. If you wish to use this method you do not need to change this
setting. However if you are using a static IP address (also called “Bridged
Ethernet” encapsulation as defined by RFC 1483), or PPP over ATM (RFC 2364)
you can select them here.
To change the connection method, select either Router with RFC 1483 or
Router with PPPoA from the pull down menu in the Encapsulation Protocol
field and click OK. If you are changing the connection type to Router with RFC
1483, read the next section. If you are changing it to Router with PPPoA, read
the PPPoA Configuration section.
