DSL-500 ADSL Router User’s Guide
Save Changes
In order to save the configuration changes that have been made to the Router you
must save them to the Router’s non-volatile RAM. You can change any or all of
the configurable settings in one session before you initiate the saving procedure.
If you experience a power loss or reboot the Router before saving, all changes will
have to be reset.

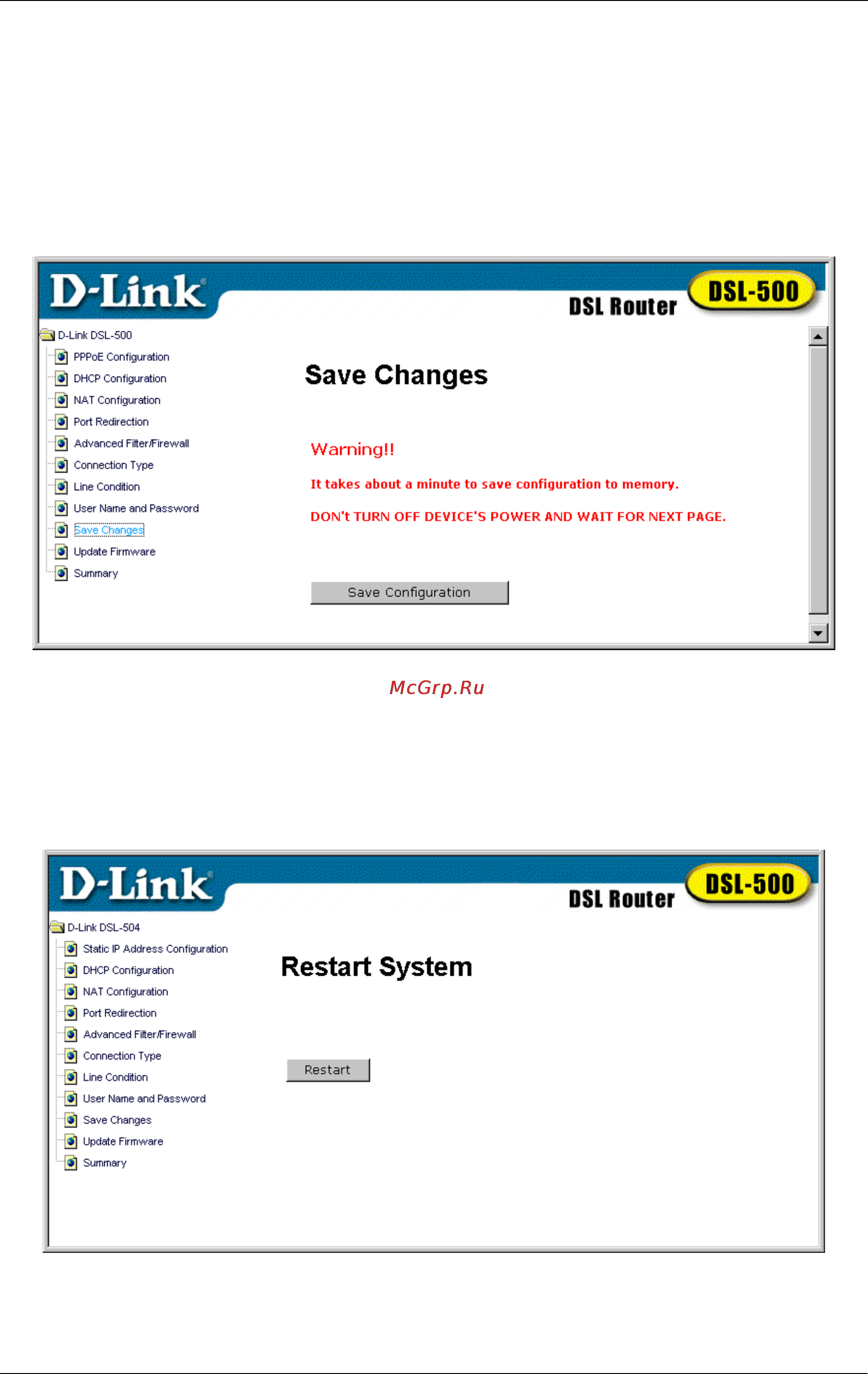

Save Changes Window
When you are ready to save the settings, click the Save Configuration button.
A pop-up message window informs you that the Router must be restarted. Do not
turn off the power to the Router while the settings are being saved.
When the Restart System window appears, click the Restart button.
After restarting the Router, the Login to web-based management module page
will again appear.
47
