DSL-500 ADSL Router User’s Guide
Connect Server or PC to Router
The Router may be connected directly to a server or PC using the RJ-45 Ethernet
port. The diagram below illustrates a PC/Server to Router connection with the
Router being employed as a firewall.

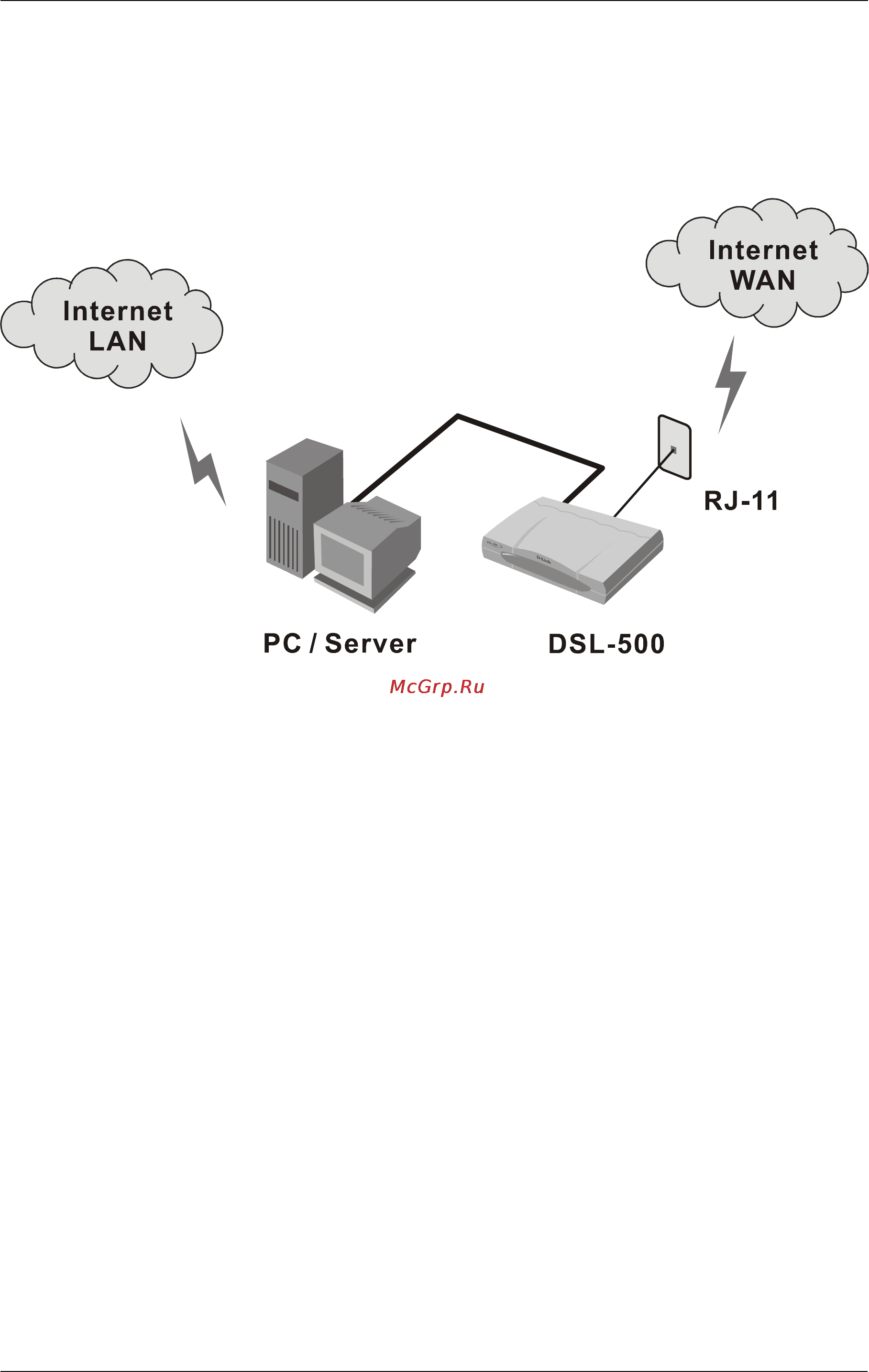

PC/Server to Router Connection
