DSL-500 ADSL Router User’s Guide
Login Button

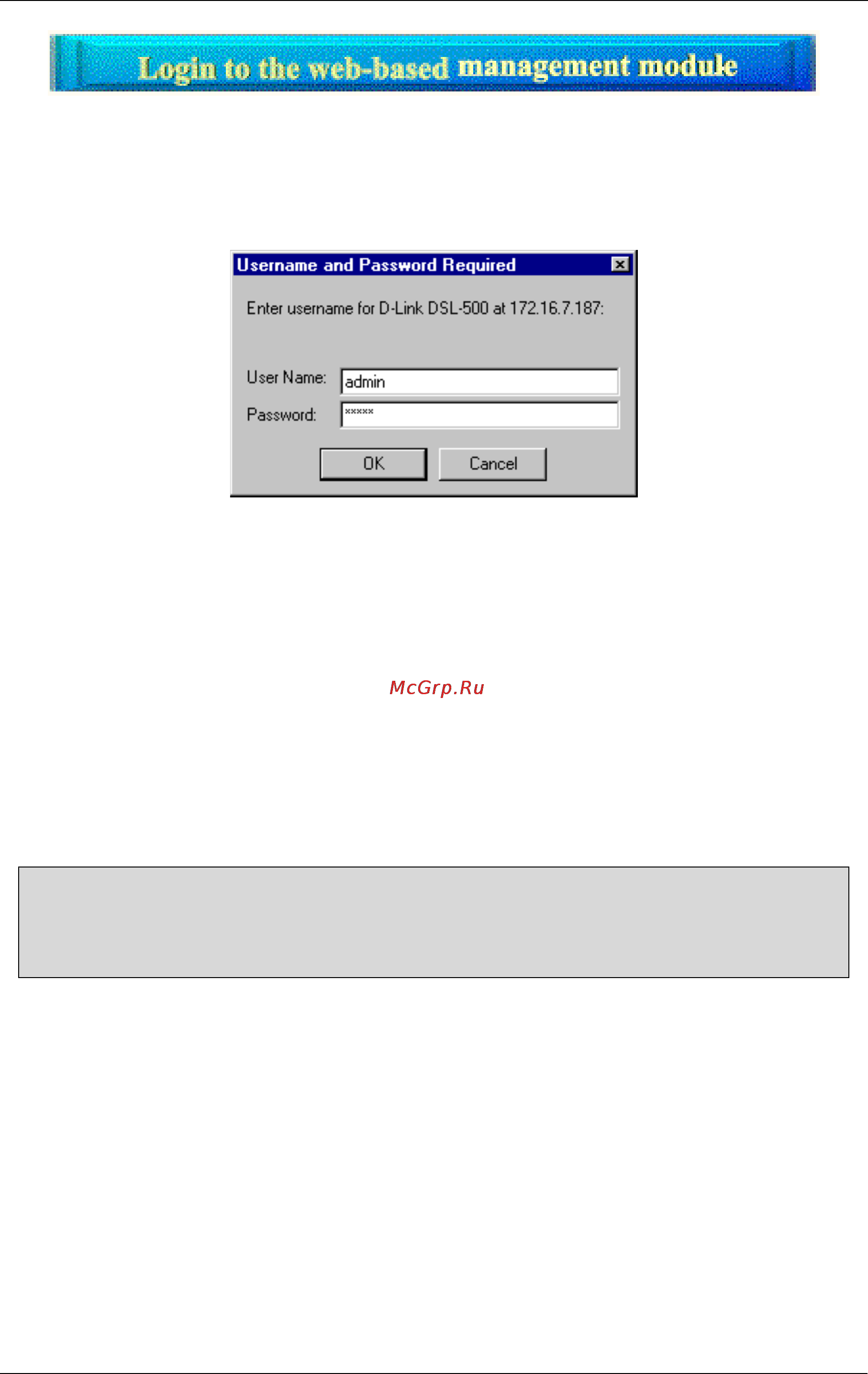

A new window will appear and you will be prompted for a user name and
password. Use default user name admin and password admin for first time set
up.
User Login
Logging in will bring up the main page of the web-based management module.
Click the D-Link DSL-500 folder located below the D-Link logo in the upper left-
hand corner. This folder will open revealing the management menu options.
These options include PPPoE Configuration, DHCP Configuration, NAT
Configuration, Port Redirection, Advanced Filter/Firewall, Connection
Type, Line Condition, Save Changes, Update Firmware and Summary.
The various management options are explained in the following sections. To
access any of the option menus click on the appropriate button in the main menu
window.
IMPORTANT: For any changes to the Router’s configuration to take effect, you must
save the new settings to non-volatile ram by going to the Save Changes menu, and
initiating the saving procedure. It will then be necessary to restart the Router. See the
section entitled Save Changes.
