DSL-500 ADSL Router User’s Guide

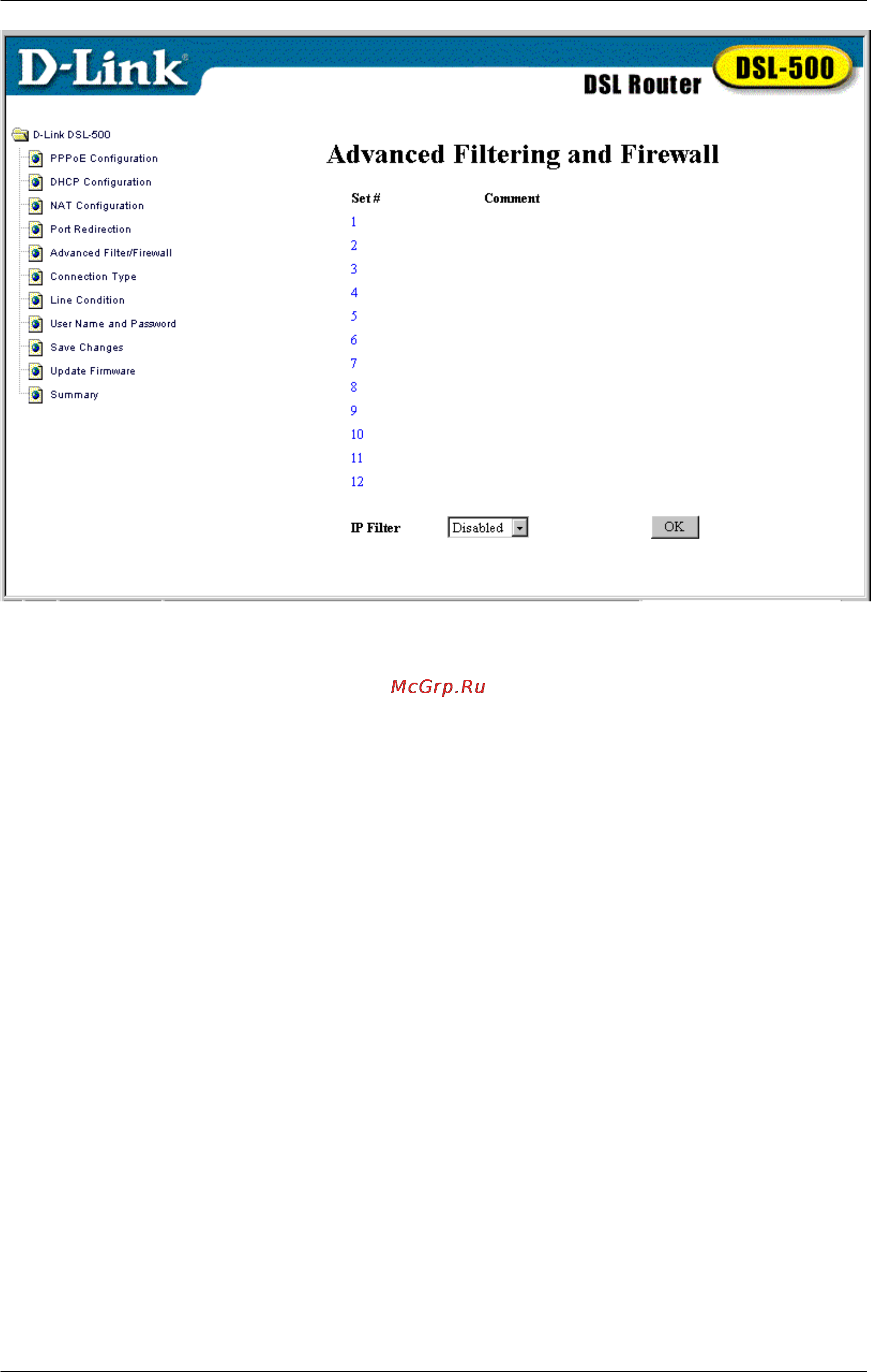

Advanced Filtering and Firewall (Screen #1)
To define the filter rule sets, click on the Advanced Filtering and Firewall button
to bring up the first window. Choose Enable in the IP Filter pull-down menu
and click the OK button to enable IP filtering. Then click on the set number you
wish to configure to proceed to the next window.
42
