DSL-500 ADSL Router User’s Guide

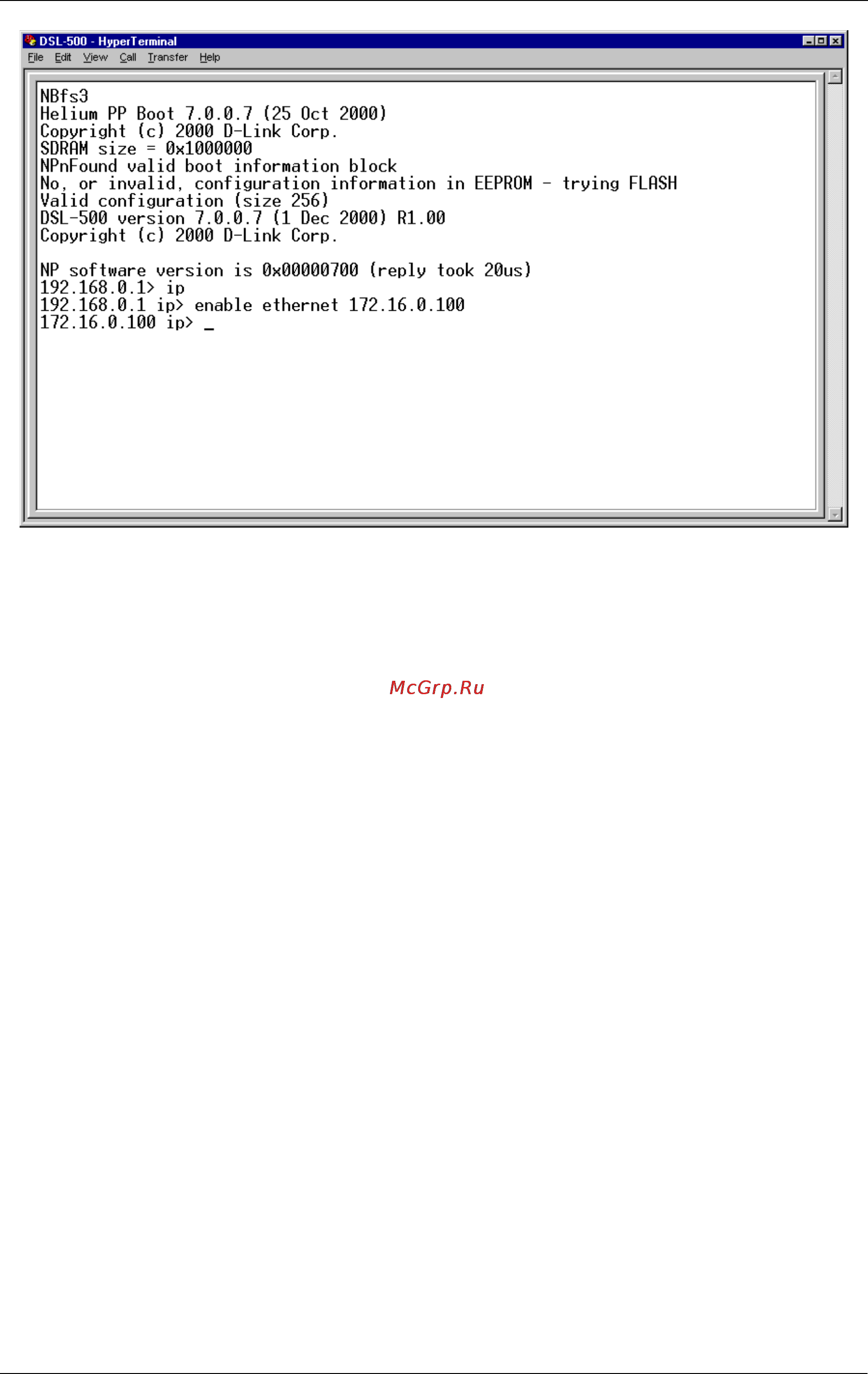

HyperTerminal Interface with new IP address
You must save the new IP address by typing the command series config save
and pressing Enter. This will save the new IP address for the Router and store it
in the device’s flash memory. You may now disconnect the terminal emulator and
access the device using the web-based management interface for configuration.
For more thorough instructions on using the out-of-band console manager, see
Chapter 7.
53
