5. Locate the APU fan connector on the motherboard.

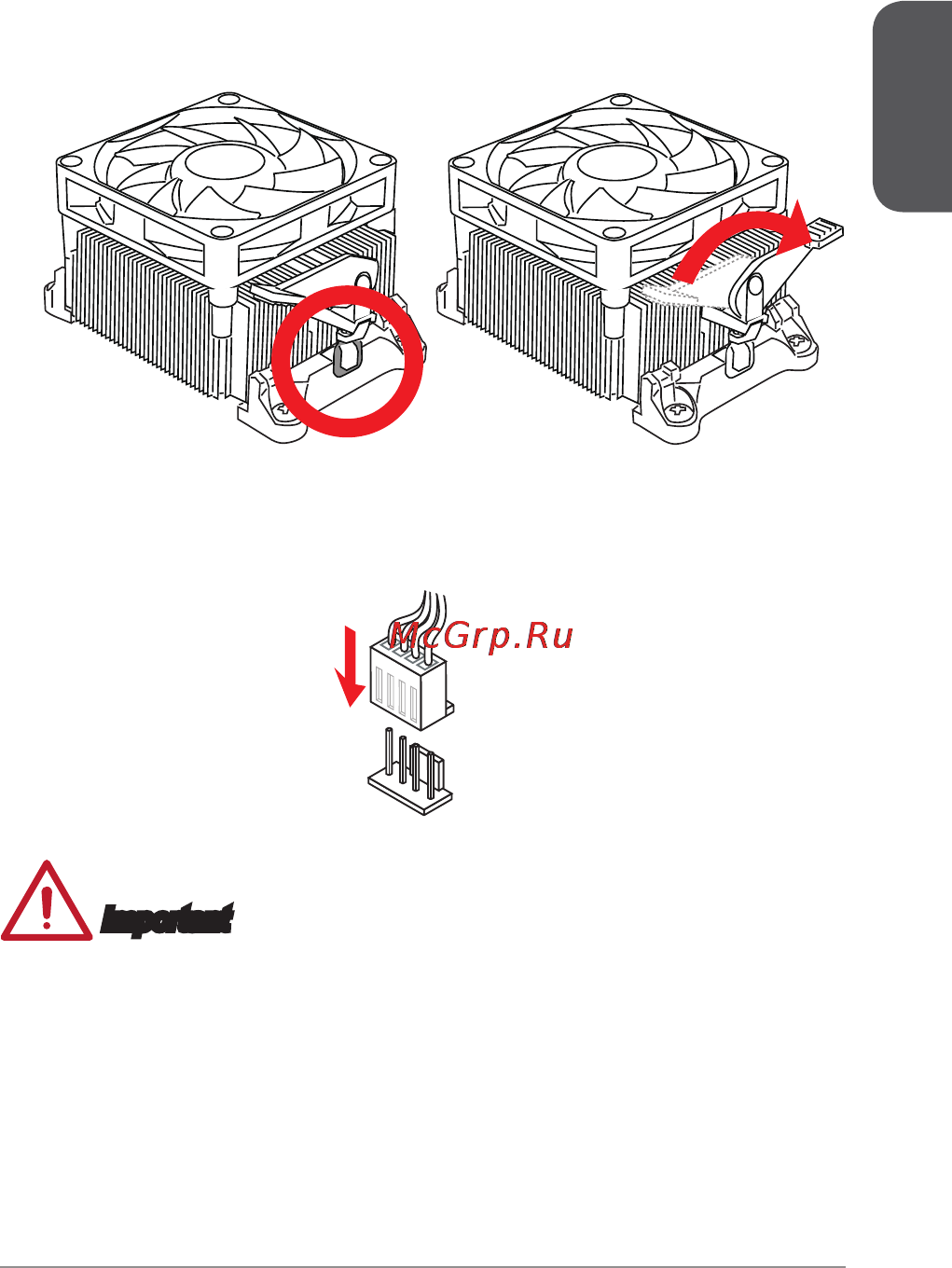

6. Position the cooling set onto the retention mechanism. Hook one end of the clip

to hook rst.

7. Then press down the other end of the clip to fasten the cooling set on the top of

the retention mechanism. Locate the Fix Lever and lift up it.

. Fasten down the lever.

9. Attach the APU Fan cable to the APU fan connector on the motherboard.

Important

While disconnecting the Safety Hook from the xed bolt, it is necessary to keep an

eye on your ngers, because once the Safety Hook is disconnected from the xed

bolt, the xed lever will spring back instantly.

Conrm that the APU cooler has formed a tight seal with the APU before booting

your system.

Please refer to the documentation in the APU cooler package for more details

about APU cooler installation.

•
