MSI 970a sli krait edition [21/88] Chapter 1
![MSI 970a sli krait edition [21/88] Chapter 1](/views2/1174528/page21/bg15.png)
Chapter 1
1-7
Getting Started
SOCKET AM3

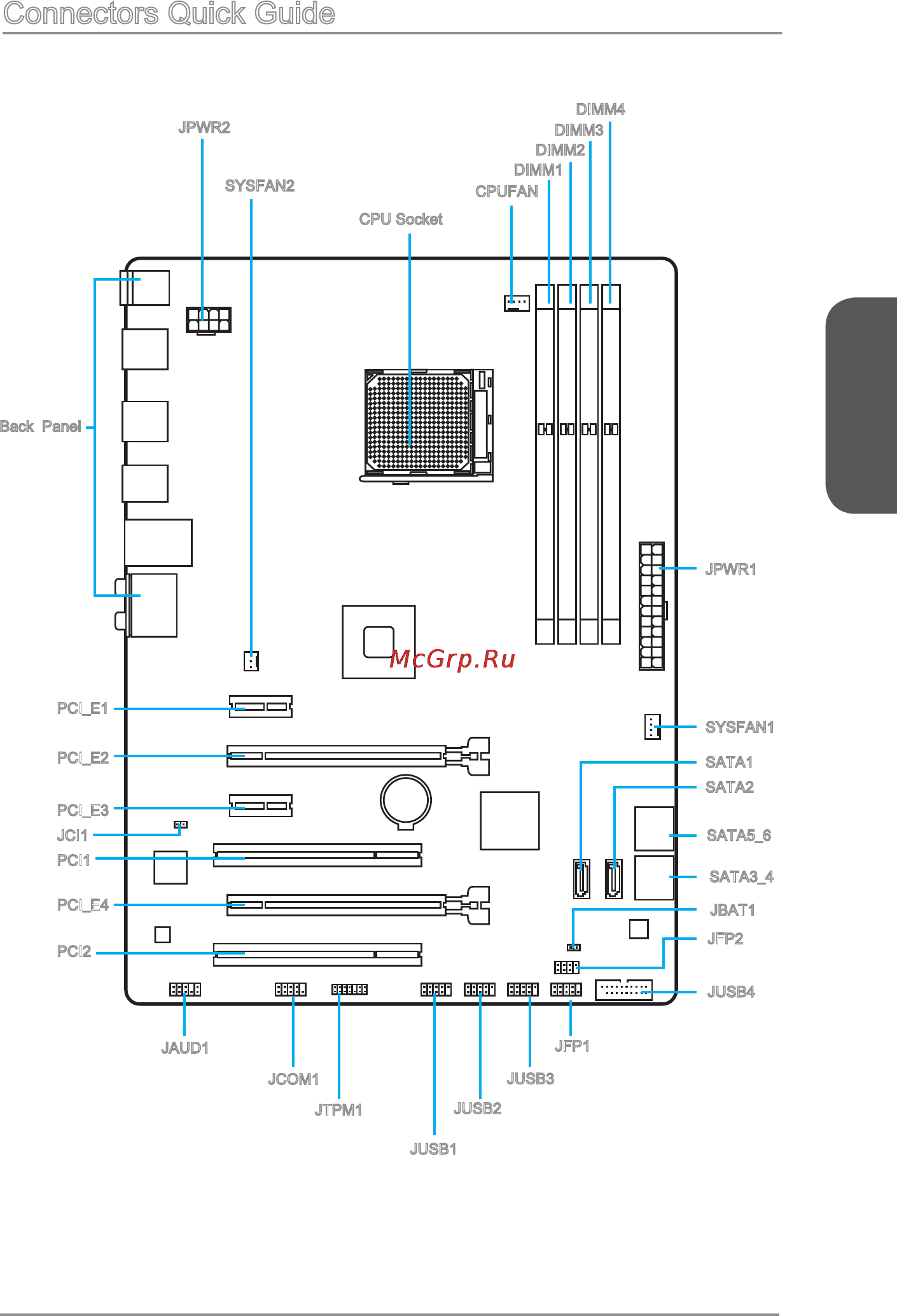

Connectors Quick Guide
Back Panel
CPU Socket
CPUFAN
DIMM2
JUSB3
JPWR1
SATA2
JAUD1
JTPM1
DIMM1
JPWR2
JCI1
SYSFAN2
JBAT1
SATA5_6
JUSB2
JFP1
PCI_E1
PCI_E2
PCI_E3
PCI_E4
PCI1
JFP2
SYSFAN1
JUSB1
JCOM1
PCI2
SATA3_4
DIMM3
DIMM4
SATA1
JUSB4
